Adaptall 5307L-12-06 5307L-12-06

Adaptall 5307L-12-06

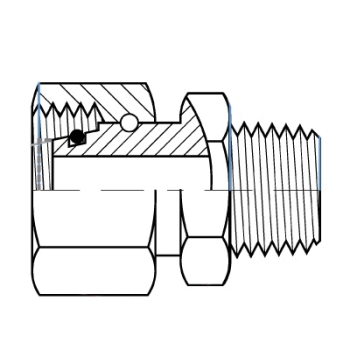

Adaptall 5307 Carbon Steel Light-Duty Straight Adapter, 12 mm Female Metric DIN Tube x 3/8 in MNPTF

  • Manufacturer: Adaptall Inc.
  • Brand: Adaptall
  • ARGPN: 5307L-12-06
  • MPN: 5307L-12-06
  • ARG Industrial Available for delivery: loading
  • ARG Industrial Available for pickup at Anchorage, AK Branch: loading
  • Available for Adaptall Inc. factory-direct delivery: loading
  • loading
  • Add to cart
Add To Favorites
  1. pin-int

Adaptall Light-Duty Straight Adapter, Series: 5307, Connection Type 1: Metric DIN Tube, Gender 1: Female, Connection Size 1: 12 mm, Thread Size 1: M18 x 1.5, Connection Type 2: NPTF, Gender 2: Male, Connection Size 2: 3/8 in, Thread Size 2: 3/8-18, Hex Size: 19 x 22 mm, Dimension Standards: ANSI B1.20.3, DIN 2353, ISO 8434-1, Material Construction: Carbon Steel, 45.5 mm Length

Connection Size 1      :      12 mm
Connection Size 2      :      3/8 in
Connection Type      :      Metric~NPT
Connection Type 1      :      Metric DIN Tube
Connection Type 2      :      NPTF
Dimension Standards      :      ANSI B1.20.3, DIN 2353, ISO 8434-1
Fitting Type      :      Straight Adapter
Gender 1      :      Female
Gender 2      :      Male
Hex Size      :      19 x 22 mm
Length      :      45.5 mm
Material      :      Steel
Material Construction      :      Carbon Steel
Series      :      5307
Shape      :      Straight
Thread Size 1      :      M18 x 1.5
Thread Size 2      :      3/8-18
  • pdfCatalog https://www.alaskarubbergroup.com//ASSETS/DOCUMENTS/ITEMS/EN/Adaptall_5070S1206C_CAT.pdf
