Adaptall 9197-08-S16-24

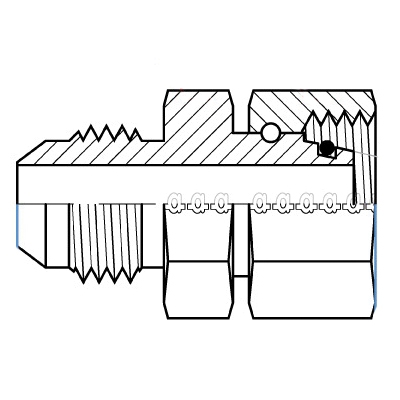

Adaptall 9197 Carbon Steel Heavy-Duty Straight Adapter, 16 mm Female Metric DIN Tube Swivel x 1/2 in Male JIC
- Manufacturer: Adaptall Inc.
- Brand: Adaptall
- ARGPN: 9197-08-S16-24
- MPN: 9197-08-S16-24
-
Available for delivery:
-
Available for pickup at
Anchorage, AK Branch:
-
Available for Adaptall Inc. factory-direct delivery:
-
Adaptall Heavy-Duty Straight Adapter, Series: 9197, Connection Type 1: Metric DIN Tube Swivel, Gender 1: Female, Connection Size 1: 16 mm, Thread Size 1: M24 x 1.5, Connection Type 2: JIC, Gender 2: Male, Connection Size 2: 1/2 in, Thread Size 2: 3/4-16 UNF, Dimension Standards: DIN 2353, ISO 8434-1, ISO 8434-2, SAE J514, Material Construction: Carbon Steel
| Connection Size 1 | : | 16 mm |
| Connection Size 2 | : | 1/2 in |
| Connection Type | : | Metric~JIC |
| Connection Type 1 | : | Metric DIN Tube Swivel |
| Connection Type 2 | : | JIC |
| Dimension Standards | : | DIN 2353, ISO 8434-1, ISO 8434-2, SAE J514 |
| Fitting Type | : | Straight Adapter |
| Gender 1 | : | Female |
| Gender 2 | : | Male |
| Material | : | Steel |
| Material Construction | : | Carbon Steel |
| Series | : | 9197 |
| Shape | : | Straight |
| Thread Size 1 | : | M24 x 1.5 |
| Thread Size 2 | : | 3/4-16 UNF |
