Adaptall TGK-02 TGK-02

Adaptall TGK-02

Adaptall Gauges Brass/Carbon Steel/Stainless Steel Gauge Kit

  • Manufacturer: Adaptall Inc.
  • Brand: Adaptall
  • ARGPN: TGK-02
  • MPN: TGK-02
  • ARG Industrial Available for delivery: loading
  • ARG Industrial Available for pickup at Anchorage, AK Branch: loading
  • Available for Adaptall Inc. factory-direct delivery: loading
  • loading
  • Add to cart
Add To Favorites
  1. pin-int

Adaptall Gauge Kit, Series: Gauges, Material Construction: Brass/Carbon Steel/Stainless Steel

Fitting Type      :      Kit
Material Construction      :      Brass/Carbon Steel/Stainless Steel
Series      :      Gauges
Shape      :      Kit

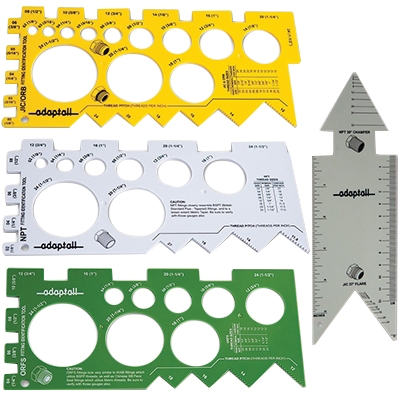

The JIC, NPT, ORB and ORFS thread gauge kit is a convenient and affordable solution to identifying domestic threaded fittings in the field, shop or store front. Featuring 4 tools in a vinyl pouch, this tool allows you to identify internal threads, external threads, thread pitch, as well as chamfer and nose cone angles specific to JIC and NPT.

  • Includes 02 (1/8 in) 5/16-24, 03 (3/16 in) 3/8-24, 04 (1/4 in) 7/16-20, 05 (5/16 in) 1/2-20, 06 (3/8 in) 9/16-18, 08 (1/2 in) 3/4-16, 10 (5/8 in) 7/8-14, 12 (3/4 in) 1-1/16-12, 14 (7/8 in) 1-3/16-12, 16 (1 in) 1-5/16-12, 20 (1-1/4 in) 1-5/8-12, 24 (1-1/2 in) 1-7/8-12 JIC & ORB tool, 02 (1/8 in) 1/8-27, 04 (1/4 in) 1/4-18, 06 (3/8 in) 3/8-18, 08 (1/2 in) 1/2-14, 12 (3/4 in) 3/4-14, 16 (1 in) 1-11.5, 20 (1-1/4 in) 1-1/4-11.5, 24 (1-1/2 in) 1-1/2-11.5 NPT tool, 04 (1/4 in) 9/16-18, 06 (3/8 in) 11/16-16, 08 (1/2 in) 13/16-16, 10 (5/8 in) 1-14, 12 (3/4 in) 1-3/16-12, 16 (1 in) 1-7/16-12, 20 (1-1/4 in) 1-11/16-12, 24 (1-1/2 in) 2-12 ORFS tool, 27 TPI, 24 TPI, 20 TPI, 18 TPI, 16 TPI, 14 TPI, 12 TPI, 11.5 TPI JIC & NPT angle gauge & ruler
