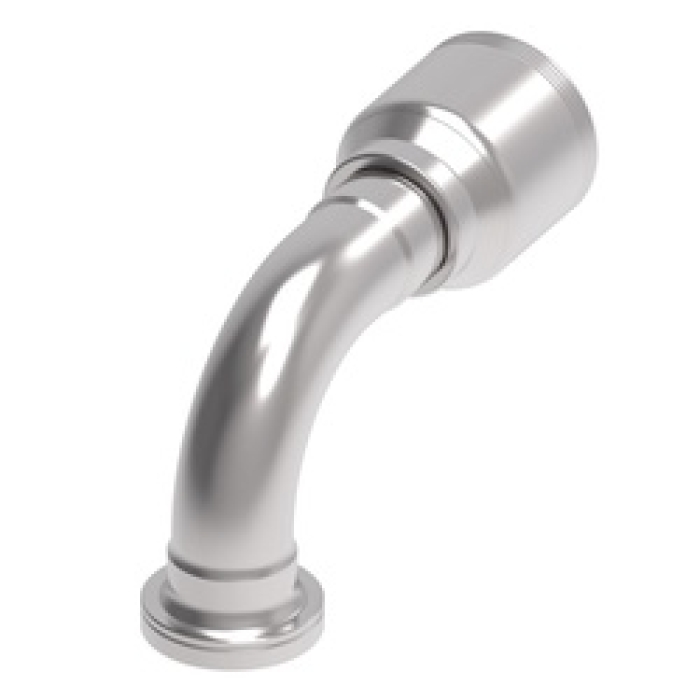

Aeroquip® 4S20FHB20.120

Eaton's complete line of crimp fittings provide unmatched quality and performance. Engineered for extremely high-pressure applications, their innovative design and superior corrosion resistance results in higher operating performance and less equipment downtime.

Aeroquip® 4-Spiral Crimp Hose Long Drop 90 deg Elbow, Series: 4S, Fitting Type: 90 deg Elbow, Connection Size 1: 1-1/4 in, Connection Type 1: Hose, Connection Size 2: 1-1/4 in, Connection Type 2: SAE Code 62 Flanged, Hose Dash Size: 20, Cut-Off Factor: 4.19 in, Material Construction: Carbon Steel, Dura-Kote, For Use With: EC525-12 to -32, GH493-12 to FC636-12 to -32, FC736-12 to -32, FC500-12 to -24, FC273B-12, -16, GH506-12 to -32, FC254-12 to -32, EC810-12, -16, EC600-12, -16 H430-12 to -32, H430R-12 to -32, EC525-12 to -32, H471-12 to -24, H464-12 to -32 and H485-16 Series Hoses, Dimension Standards: SAE J1176, 7.43 in L x 2.46 in W x 4.73 in H

Connection Size 1	:	1-1/4 in
Connection Size 2	:	1-1/4 in
Connection Type	:	Hose|Flanged
Connection Type 1	:	Hose
Connection Type 2	:	SAE Code 62 Flanged
Cut-Off Factor	:	4.19 in
Dimension Standards	:	SAE J1176
Dimensions	:	7.43 in L x 2.46 in W x 4.73 in H
Finish	:	Dura-Kote
Fitting Type	:	90 deg Elbow
For Use With	:	EC525-12 to -32, GH493-12 to FC636-12 to -32, FC736-12 to -32, FC500-12 to -24, FC273B-12, -16, GH506-12 to -32, FC254-12 to -32, EC810-12, -16, EC600-12, -16 H430-12 to -32, H430R-12 to -32, EC525-12 to -32, H471-12 to -24, H464-12 to -32 and H485-16 Series Hoses
Hose Dash Size	:	20
Material	:	Steel
Material Construction	:	Carbon Steel
Series	:	4S

New Dura-Kote™ plating technology for up to 1000 hr of corrosion-resistant|New patent pending dura-seal technology to eliminate hose assembly cool down leakage|Class zero leakage SAE J1176 on approved hose styles|Eaton's MatchMate™ spiral hose/fitting identification system program provides identification markings on the hose, hose fittings and crimp dies for quick and easy assembly|120 mm long drop
