Aeroquip® 4SA16FRC12 4SA16FRC12

Aeroquip® 4SA16FRC12

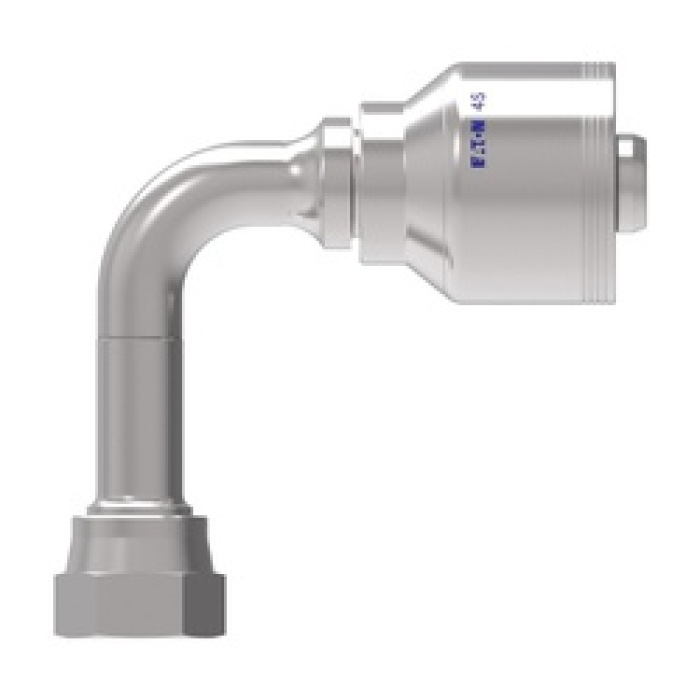

Aeroquip® 4S Series 4SA16FRC12 4-Spiral Crimp Hose Long Drop 90 deg Elbow, 3/4 in Hose

  • Manufacturer: Danfoss Power Solutions
  • Brand: Aeroquip®
  • ARGPN: 4SA16FRC12
  • MPN: 4SA16FRC12
  • ARG Industrial Available for delivery: loading
  • ARG Industrial Available for pickup at Anchorage, AK Branch: loading
  • Available for Danfoss Power Solutions factory-direct delivery: loading
  • loading
  • Add to cart
Add To Favorites
  1. pin-int

Eaton's complete line of crimp fittings provide unmatched quality and performance. Engineered for extremely high-pressure applications, their innovative design and superior corrosion resistance results in higher operating performance and less equipment downtime.

Aeroquip® 4-Spiral Crimp Hose Long Drop 90 deg Elbow, Series: 4S, Fitting Type: 90 deg Elbow, Connection Size 1: 3/4 in, Connection Type 1: Hose, Connection Size 2: 1 in, Connection Type 2: Female ORFS Swivel, Hose Dash Size: 12, Cut-Off Factor: 3.19 in, Material Construction: Carbon Steel, Dura-Kote, 1-7/16-12 Thread, 1-5/8 in Hex, For Use With: EC525-12 to -32, GH493-12 to -32, FC636-12 to -32, FC736-12 to -32, FC500-12 to -24, FC273B-12 and -16, GH506-12 to -32, FC254-12 to -32, EC810-12 and -16, EC600-12 and -16, H430-12 to -32, H430R-12 to -32, EC525-12 to -32, H471-12 to -24, H464-12 to -32 and H485-16 Hoses, Dimension Standards: SAE J1176, 4.61 in L x 1.836 in W x 4.49 in H

Connection Size 1      :      3/4 in
Connection Size 2      :      1 in
Connection Type      :      Hose|Female ORFS Swivel
Connection Type 1      :      Hose
Connection Type 2      :      Female ORFS Swivel
Cut-Off Factor      :      3.19 in
Dimension Standards      :      SAE J1176
Dimensions      :      4.61 in L x 1.836 in W x 4.49 in H
Finish      :      Dura-Kote
Fitting Type      :      90 deg Elbow
For Use With      :      EC525-12 to -32, GH493-12 to -32, FC636-12 to -32, FC736-12 to -32, FC500-12 to -24, FC273B-12 and -16, GH506-12 to -32, FC254-12 to -32, EC810-12 and -16, EC600-12 and -16, H430-12 to -32, H430R-12 to -32, EC525-12 to -32, H471-12 to -24, H464-12 to -32 and H485-16 Hoses
Hex Size      :      1-5/8 in
Hose Dash Size      :      12
Material      :      Steel
Material Construction      :      Carbon Steel
Series      :      4S
Thread Size      :      1-7/16-12
New Dura-Kote™ plating technology for up to 1000 hr of corrosion-resistant|New patent pending dura-seal technology to eliminate hose assembly cool down leakage|Class zero leakage SAE J1176 on approved hose styles|Eaton's MatchMate™ spiral hose/fitting identification system program provides identification markings on the hose, hose fittings and crimp dies for quick and easy assembly
