Aeroquip® 4S16KF16 4S16KF16

Aeroquip® 4S16KF16

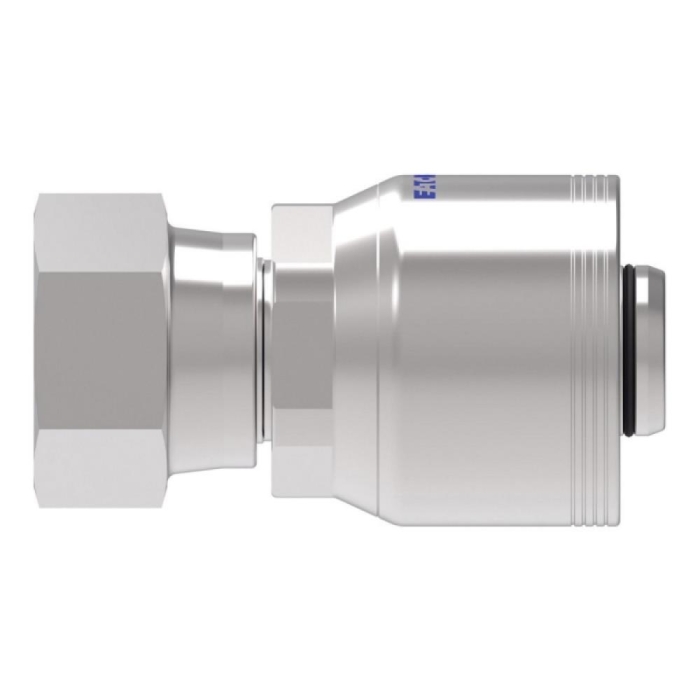

Aeroquip® 4S16KF16 4-Spiral Crimp Straight Hose Fitting, 1 in Hose

  • Manufacturer: Danfoss Power Solutions
  • Brand: Aeroquip®
  • ARGPN: 4S16KF16
  • MPN: 4S16KF16
  • ARG Industrial Available for delivery: loading
  • ARG Industrial Available for pickup at Anchorage, AK Branch: loading
  • Available for Danfoss Power Solutions factory-direct delivery: loading
  • loading
  • Add to cart
Add To Favorites
  1. pin-int

Eaton's complete line of crimp fittings provide unmatched quality and performance. Engineered for extremely high-pressure applications, their innovative design and superior corrosion resistance results in higher operating performance and less equipment downtime.

Aeroquip® 4-Spiral Crimp Straight Hose Fitting, Series: 4S, Fitting Type: Hose Fitting, Connection Size 1: 1 in, Connection Type 1: Hose, Connection Size 2: 33 mm, Connection Type 2: Female 30 deg Komatsu Flared Seat Swivel, Connection Type: Hose|Female Komatsu Swivel, Hose Dash Size: 16, Cut-Off Factor: 1.06 in, Steel, Material Construction: Carbon Steel, Dura-Kote, M33 x 1.5 Thread, 1-5/8 in Hex, For Use With: EC525-12 to -32, GH493-12 to FC636-12 to -32, FC736-12 to -32, FC500-12 to -24, FC273B-12, -16, GH506-12 to -32, FC254-12 to -32, EC810-12, -16, EC600-12, -16 H430-12 to -32, H430R-12 to -32, EC525-12 to -32, H471-12 to -24, H464-12 to -32 and H485-16 Series Hoses, 2.62 in L x 2.084 in W x 2.084 in H

Connection Size 1      :      1 in
Connection Size 2      :      33 mm
Connection Type      :      Hose|Female Komatsu Swivel
Connection Type 1      :      Hose
Connection Type 2      :      Female 30 deg Komatsu Flared Seat Swivel
Cut-Off Factor      :      1.06 in
Dimensions      :      2.62 in L x 2.084 in W x 2.084 in H
Finish      :      Dura-Kote
Fitting Type      :      Hose Fitting
For Use With      :      EC525-12 to -32, GH493-12 to FC636-12 to -32, FC736-12 to -32, FC500-12 to -24, FC273B-12, -16, GH506-12 to -32, FC254-12 to -32, EC810-12, -16, EC600-12, -16 H430-12 to -32, H430R-12 to -32, EC525-12 to -32, H471-12 to -24, H464-12 to -32 and H485-16 Series Hoses
Hex Size      :      1-5/8 in
Hose Dash Size      :      16
Material      :      Steel
Material Construction      :      Carbon Steel
Series      :      4S Series
Thread Size      :      M33 x 1.5
New Dura-Kote™ plating technology for up to 1000 hr of corrosion-resistant|New patent pending dura-seal technology to eliminate hose assembly cool down leakage|Class zero leakage SAE J1176 on approved hose styles|Eaton's MatchMate™ spiral hose/fitting identification system program provides identification markings on the hose, hose fittings and crimp dies for quick and easy assembly
