Aeroquip® 4TA8FR6

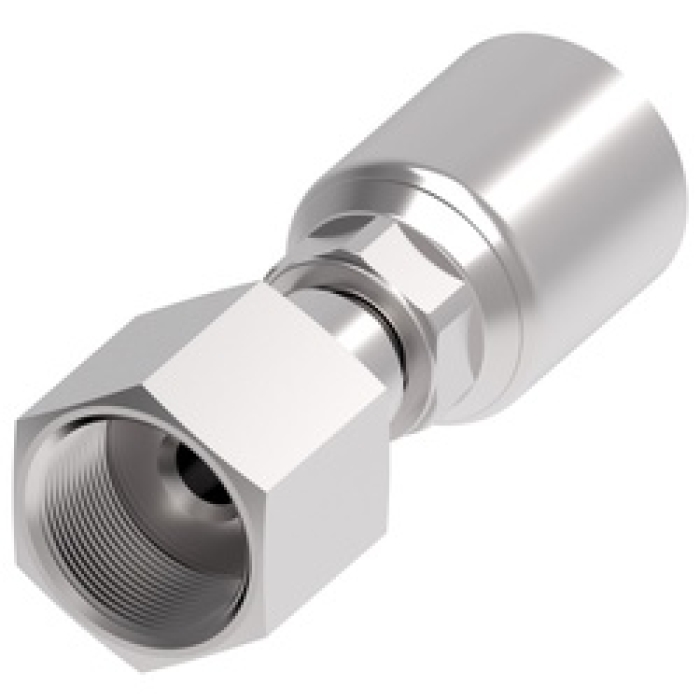

Aeroquip® 4TA8FR6 Crimp Straight Hose Fitting, 3/8 in Hose x 1/2 in Female ORFS Swivel, Steel
- Manufacturer: Danfoss Power Solutions
- Brand: Aeroquip®
- ARGPN: 4TA8FR6
- MPN: 4TA8FR6
-
Available for delivery:
-
Available for pickup at
Anchorage, AK Branch:
-
Available for Danfoss Power Solutions factory-direct delivery:
-
Synflex Optimum fittings are optimized to work together with Synflex Optimum thermoplastic hydraulic hoses.
Aeroquip® Crimp Straight Hose Fitting, Series: 4T, Fitting Type: Hose Fitting, Connection Size 1: 3/8 in, Connection Type 1: Hose, Connection Size 2: 1/2 in, Connection Type 2: Female ORFS Swivel, Connection Type: Hose|Female ORFS Swivel, Hose Dash Size: 06, Cut-Off Factor: 1.32 in, Steel, Material Construction: Carbon Steel, Dura-Kote, 13/16-16 Thread, 0.94 x 0.69 in Hex, For Use With: Thermoplastic Hoses, 2.73 in L x 0.96 in W x 1.08 in H
| Connection Size 1 | : | 3/8 in |
| Connection Size 2 | : | 1/2 in |
| Connection Type | : | Hose|Female ORFS Swivel |
| Connection Type 1 | : | Hose |
| Connection Type 2 | : | Female ORFS Swivel |
| Cut-Off Factor | : | 1.32 in |
| Dimensions | : | 2.73 in L x 0.96 in W x 1.08 in H |
| Finish | : | Dura-Kote |
| Fitting Type | : | Hose Fitting |
| For Use With | : | Thermoplastic Hoses |
| Hex Size | : | 0.94 x 0.69 in |
| Hose Dash Size | : | 06 |
| Material | : | Steel |
| Material Construction | : | Carbon Steel |
| Series | : | 4T Series |
| Thread Size | : | 13/16-16 |
Synflex Optimum 4TA fittings follow a simple one-piece design that reduces matching errors during assembly, eliminates brazing failure risks and lowers assembly time|A captive nut eliminates the weak spots found in other fittings and it evenly distributes the force applied during assembly, helping prevent cracks and leaks that halt workflows and lead to unplanned downtime|Easier insertion, less force needed during assembly to push fitting onto hose|They have a compact design and smaller profile making it easier for routing and assembly installation, especially in tight spaces|Part numbers printed on fittings for easy identification|Dura-Kote™ plating comes standard in our Synflex optimum fittings|Dura-Kote™ plating delivers up 3X the corrosion protection on carbon steel fittings as compared to competitive hose fittings and provides up to 1000 hr of corrosion-resistant, this is a huge step forward in metal fitting corrosion protection
