Aeroquip® FF3089-0806S

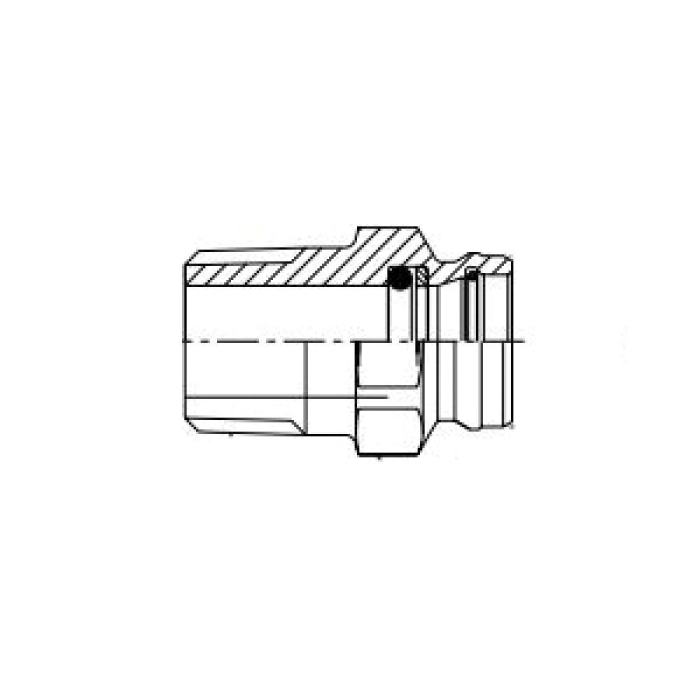

Aeroquip® FF3089 Series FF3089-0806S Straight Adapter, 0.38 in MNPTF x 1.64 in Female STC, Carbon Steel
- Manufacturer: Danfoss Power Solutions
- Brand: Aeroquip®
- ARGPN: FF3089-0806S
- MPN: FF3089-0806S
-
Available for delivery:
-
Available for pickup at
Anchorage, AK Branch:
-
Available for Danfoss Power Solutions factory-direct delivery:
-
Eaton offers low pressure tubing with male STC end configurations for use with steel tubing that meets SAE J525 specifications. The product design has been subjected to a full test regimen. Reusability has been proven by testing this product to many cycles of connection and disconnection.
Aeroquip® Straight Adapter, Series: FF3089 Series, Adapter Fitting, 0.38 in Connection Size 1, MNPTF Connection Type 1, 1.64 in Connection Size 2, Female STC Connection Type 2, MNPT|Female STC Connection, Carbon Steel, Steel Material Construction, 1/2-14 Thread, 7/8 in Hex, 500 psi Maximum Operating Pressure, -40 to 250 deg F Operating
| Connection Size 1 | : | 0.38 in |
| Connection Size 2 | : | 1.64 in |
| Connection Type | : | MNPT|Female STC |
| Connection Type 1 | : | MNPTF |
| Connection Type 2 | : | Female STC |
| Fitting Type | : | Adapter |
| Hex Size | : | 7/8 in |
| Material | : | Carbon Steel |
| Material Construction | : | Steel |
| Maximum Operating Pressure | : | 500 psi |
| Operating Temperature | : | -40 to 250 deg F |
| Series | : | FF3089 Series |
| Thread Size | : | 1/2-14 |
Eliminates the braze joints and potential leak paths|Reduced weight compared to standard STC connections|Formed male is an integral part of the tubing|Can be used with standard STC female connections|Can be used in conjunction with formed hose nipples used with FC699 and FC498 hoses
