Aeroquip® FJ3094-0806S

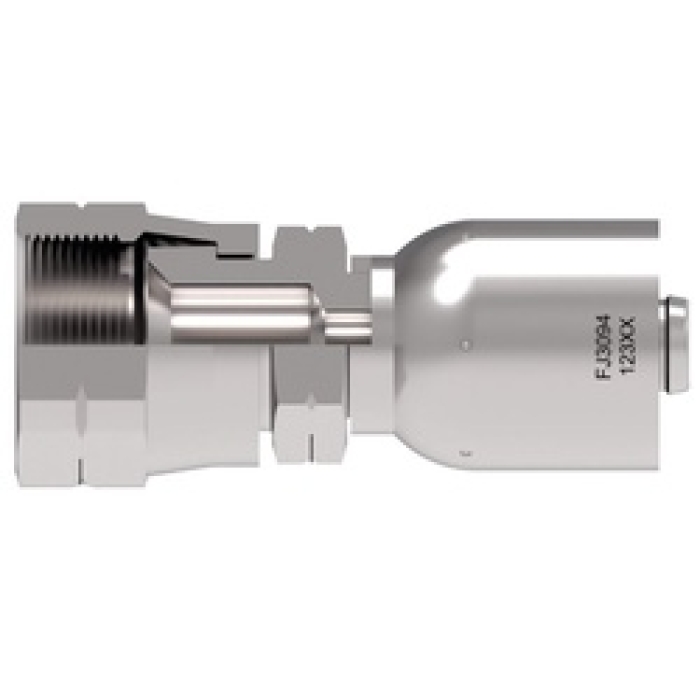

Aeroquip® FJ3094-0806S Straight Crimp Hose Fitting, 3/4 in Female SAE 45 deg Swivel x 0.31 in Hose, Steel
- Manufacturer: Danfoss Power Solutions
- Brand: Aeroquip®
- ARGPN: FJ3094-0806S
- MPN: FJ3094-0806S
-
Available for delivery:
-
Available for pickup at
Anchorage, AK Branch:
-
Available for Danfoss Power Solutions factory-direct delivery:
-
Aeroquip® Straight Crimp Hose Fitting, FJ3094 Series, Hose Fitting Fitting, Connection Size 1: 3/4 in, Connection Type 1: Female SAE 45 deg Swivel, Connection Size 2: 0.31 in, Connection Type 2: Hose, Female SAE Flared Swivel|Hose Connection, #6 Hose Dash Size, 1.32 in Cut-Off Factor, Steel, Carbon Steel Material Construction, Dura-Kote Plated/Zinc-Plated, 3/4-16 Thread, 0.88 in Hex, For Use With: H017, H039, H104, H114, H115, H145, H146, H245, H324, H325, H350, H425, H545, H900, H1812, H0105, H0106, H116, H1981, H1982, H9949, H1776, H1777, H1571 and H600 Hoses, 2.14 in L x 0.88 in W x 1.01 in H, Additional Information: 0.23 in Hole ID
| Additional Information | : | 0.23 in Hole ID |
| Connection Size 1 | : | 3/4 in |
| Connection Size 2 | : | 0.31 in |
| Connection Type | : | Female SAE Flared Swivel|Hose |
| Connection Type 1 | : | Female SAE 45 deg Swivel |
| Connection Type 2 | : | Hose |
| Cut-Off Factor | : | 1.32 in |
| Dimensions | : | 2.14 in L x 0.88 in W x 1.01 in H |
| Finish | : | Dura-Kote Plated/Zinc-Plated |
| Fitting Type | : | Hose Fitting |
| For Use With | : | H017, H039, H104, H114, H115, H145, H146, H245, H324, H325, H350, H425, H545, H900, H1812, H0105, H0106, H116, H1981, H1982, H9949, H1776, H1777, H1571 and H600 Hoses |
| Hex Size | : | 0.88 in |
| Hose Dash Size | : | #6 |
| Material | : | Steel |
| Material Construction | : | Carbon Steel |
| Series | : | FJ3094 Series |
| Thread Size | : | 3/4-16 |
Dura-Kote plating for superior corrosion resistance|Innovative design to deliver performance and maximum uptime|System engineered to extend hose assembly life
