Aeroquip® FJ3114-0810S

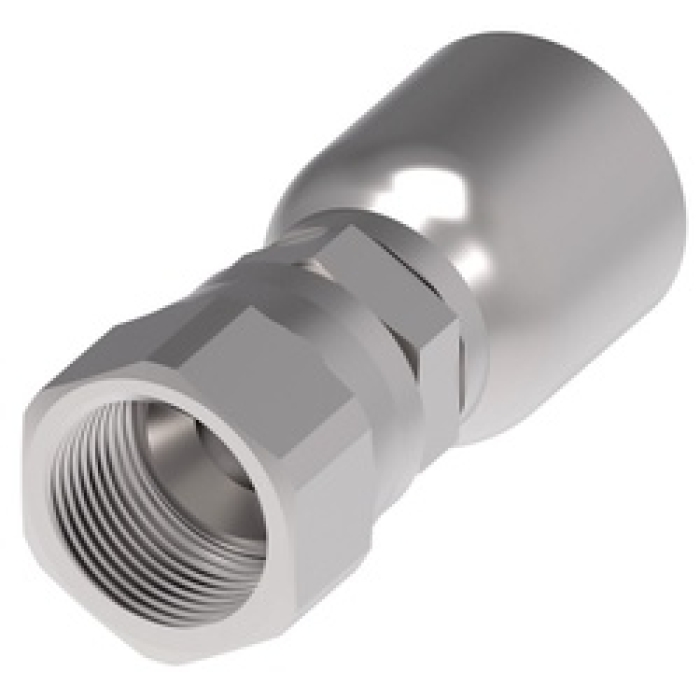

Aeroquip® FJ3114-0810S 100R5 Crimp Straight Hose Fitting, 5/8 in Hose x 1/2 in Female SAE 37 deg JIC Swivel
- Manufacturer: Danfoss Power Solutions
- Brand: Aeroquip®
- ARGPN: FJ3114-0810S
- MPN: FJ3114-0810S
-
Available for delivery:
-
Available for pickup at
Anchorage, AK Branch:
-
Available for Danfoss Power Solutions factory-direct delivery:
-
100R5-Style crimp fittings from Eaton complement the company's industry recognized, reusable fitting line. Aeroquip® 100R5 fittings are a low cost, lightweight alternative for high-volume applications that do not require field assembled fittings. Unique crimping dies are required for assembly.
Aeroquip® 100R5 Crimp Straight Hose Fitting, Series: FJ3114, Fitting Type: Hose Fitting, Connection Size 1: 5/8 in, Connection Type 1: Hose, Connection Size 2: 1/2 in, Connection Type 2: Female SAE 37 deg JIC Swivel, Connection Type: Hose|Female JIC Swivel, Hose Dash Size: 10, Cut-Off Factor: 1.41 in, Steel, Material Construction: Carbon Steel, Dura-Kote, 3/4-16 Thread, 7/8 in Hex, For Use With: 1503, FC234, FC300, FC350 and FC355 Series Hoses, 2.29 in L x 0.875 in W x 1.01 in H, -40 to 50 deg F Operating
| Connection Size 1 | : | 5/8 in |
| Connection Size 2 | : | 1/2 in |
| Connection Type | : | Hose|Female JIC Swivel |
| Connection Type 1 | : | Hose |
| Connection Type 2 | : | Female SAE 37 deg JIC Swivel |
| Cut-Off Factor | : | 1.41 in |
| Dimensions | : | 2.29 in L x 0.875 in W x 1.01 in H |
| Finish | : | Dura-Kote |
| Fitting Type | : | Hose Fitting |
| For Use With | : | 1503, FC234, FC300, FC350 and FC355 Series Hoses |
| Hex Size | : | 7/8 in |
| Hose Dash Size | : | 10 |
| Material | : | Steel |
| Material Construction | : | Carbon Steel |
| Operating Temperature | : | -40 to 50 deg F |
| Series | : | FJ3114 Series |
| Thread Size | : | 3/4-16 |
