Aeroquip® FJ3249-1212S FJ3249-1212S

Aeroquip® FJ3249-1212S

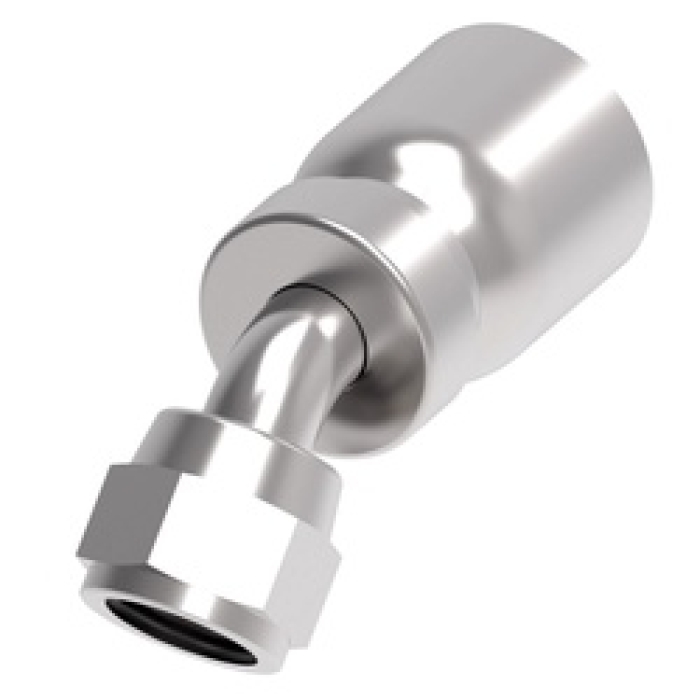

Aeroquip® FJ3249-1212S 100R5 Crimp Hose 45 deg Elbow, 3/4 in Hose x 3/4 in Female SAE 37 deg JIC Swivel

  • Manufacturer: Danfoss Power Solutions
  • Brand: Aeroquip®
  • ARGPN: FJ3249-1212S
  • MPN: FJ3249-1212S
  • ARG Industrial Available for delivery: loading
  • ARG Industrial Available for pickup at Anchorage, AK Branch: loading
  • Available for Danfoss Power Solutions factory-direct delivery: loading
  • loading
  • Add to cart
Add To Favorites
  1. pin-int

Aeroquip® 100R5 Crimp Hose 45 deg Elbow, Series: FJ3249, Fitting Type: 45 deg Elbow, Connection Size 1: 3/4 in, Connection Type 1: Hose, Connection Size 2: 3/4 in, Connection Type 2: Female SAE 37 deg JIC Swivel, Connection Type: Hose|Female JIC Swivel, Hose Dash Size: 12, Cut-Off Factor: 1.94 in, Steel, Material Construction: Carbon Steel, Dura-Kote, 1-1/16-12 Thread, 1-1/4 in Hex, For Use With: H104, H145, H145R, H190, H190H, H245, H245L, H280, H290, H290H, H290L, H345, H350, H400, H421, H425, H1777 (-04, -06, 08), H1776 (-04 thru -20), H1571 (-12 only), H6002 (-08, -12, -16), H6008 (-16 & -20), H6009 (-20 only), H9622 (-12, -16, -20), H265 (-04, -06, -08, -12, -16), H275 (-04 thru -16), H1812 (-04 thru -20), H0106 (-04 thru -10), H0105 (-06 thru -12, -20), H116 (-04, -06, -08), H115 (-04 thru -20), H1982 (-06 thru -16), H1981 (-04, -06, -08) and H9949 Series Hoses, 4.02 in L x 1.25 in W x 2.59 in H

Connection Size 1      :      3/4 in
Connection Size 2      :      3/4 in
Connection Type      :      Hose|Female JIC Swivel
Connection Type 1      :      Hose
Connection Type 2      :      Female SAE 37 deg JIC Swivel
Cut-Off Factor      :      1.94 in
Dimensions      :      4.02 in L x 1.25 in W x 2.59 in H
Finish      :      Dura-Kote
Fitting Type      :      45 deg Elbow
For Use With      :      H104, H145, H145R, H190, H190H, H245, H245L, H280, H290, H290H, H290L, H345, H350, H400, H421, H425, H1777 (-04, -06, 08), H1776 (-04 thru -20), H1571 (-12 only), H6002 (-08, -12, -16), H6008 (-16 & -20), H6009 (-20 only), H9622 (-12, -16, -20), H265 (-04, -06, -08, -12, -16), H275 (-04 thru -16), H1812 (-04 thru -20), H0106 (-04 thru -10), H0105 (-06 thru -12, -20), H116 (-04, -06, -08), H115 (-04 thru -20), H1982 (-06 thru -16), H1981 (-04, -06, -08) and H9949 Series Hoses
Hex Size      :      1-1/4 in
Hose Dash Size      :      12
Material      :      Steel
Material Construction      :      Carbon Steel
Series      :      FJ3249 Series
Thread Size      :      1-1/16-12
