Aeroquip® FJ3250-0604S

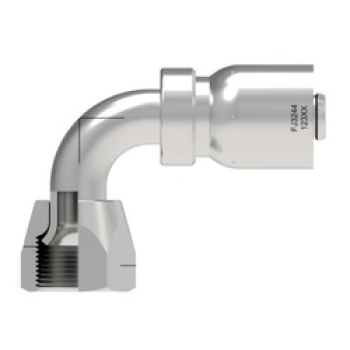

Aeroquip® FJ3250-0604S 90 deg Crimp Hose Elbow, 9/16 in Female SAE 37 deg JIC Swivel x 0.19 in Hose, Steel
- Manufacturer: Danfoss Power Solutions
- Brand: Aeroquip®
- ARGPN: FJ3250-0604S
- MPN: FJ3250-0604S
-
Available for delivery:
-
Available for pickup at
Anchorage, AK Branch:
-
Available for Danfoss Power Solutions factory-direct delivery:
-
Aeroquip® 90 deg Crimp Hose Elbow, FJ3250 Series, 90 deg Elbow Fitting, Connection Size 1: 9/16 in, Connection Type 1: Female SAE 37 deg JIC Swivel, Connection Size 2: 0.19 in, Connection Type 2: Hose, Female JIC Swivel|Hose Connection, #4 Hose Dash Size, 1.05 in Cut-Off Factor, Steel, Carbon Steel Material Construction, Dura-Kote Plated, 9/16-18 Thread, 0.69 in Hex, For Use With: H104, H145, H145R, H190, H190H, H245, H245L, H280, H290, H290H, H290L, H345, H350, H400, H421 and H425 Hoses, 2.17 in L x 0.69 in W x 1.57 in H, Additional Information: 0.14 in Hole ID
| Additional Information | : | 0.14 in Hole ID |
| Connection Size 1 | : | 9/16 in |
| Connection Size 2 | : | 0.19 in |
| Connection Type | : | Female JIC Swivel|Hose |
| Connection Type 1 | : | Female SAE 37 deg JIC Swivel |
| Connection Type 2 | : | Hose |
| Cut-Off Factor | : | 1.05 in |
| Dimensions | : | 2.17 in L x 0.69 in W x 1.57 in H |
| Finish | : | Dura-Kote Plated |
| Fitting Type | : | 90 deg Elbow |
| For Use With | : | H104, H145, H145R, H190, H190H, H245, H245L, H280, H290, H290H, H290L, H345, H350, H400, H421 and H425 Hoses |
| Hex Size | : | 0.69 in |
| Hose Dash Size | : | #4 |
| Material | : | Steel |
| Material Construction | : | Carbon Steel |
| Series | : | FJ3250 Series |
| Thread Size | : | 9/16-18 |
Dura-Kote plating for superior corrosion resistance|Innovative design to deliver performance and maximum uptime|System engineered to extend hose assembly life
