Aeroquip® GH781-4 GH781-04

Aeroquip® GH781-4

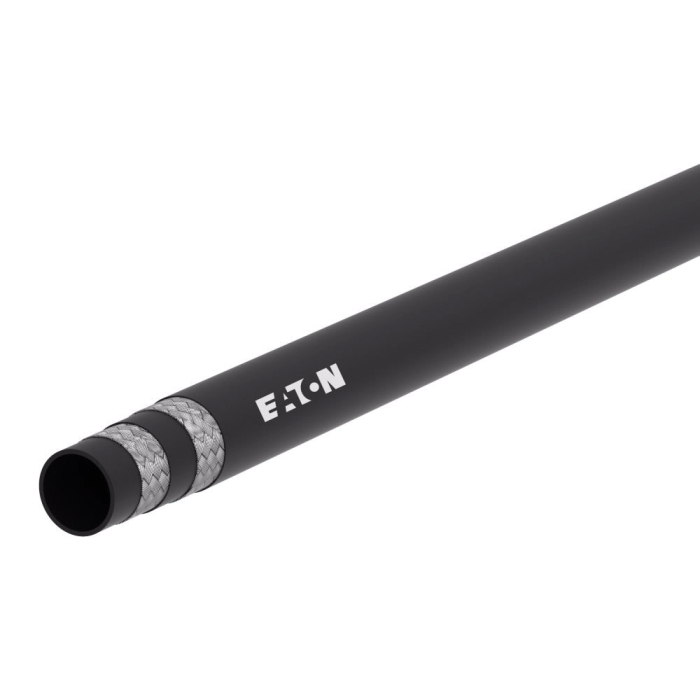

Aeroquip® MatchMate® Global GH781 Black Nitrile Braided Hydraulic Hose, 1/4 in, 1 ft L, 6500 psi

Add To Favorites
  1. pin-int

Aeroquip® MatchMate® Global Braided Hydraulic Hose, Series: GH781, Nominal Size: 1/4 in, Dash Size: 04, 0.56 in OD, 1/4 in ID, 0.31 in Thick Wall, 1 ft Length, 6500 psi, SAE Rating: SAE 100R16/EN 857 2SC, Material Construction: Nitrile, PVC/Nitrile Blend Cover, Construction: 2-Ply Braided Wire, Black, 1.97 in Bend Radius, Resistance Properties: Abrasion, -50.8 deg F Low, 258.8 deg F High

Attribute Type Configurator      :      Parent
Bend Radius      :      1.97 in
Color      :      Black
Construction      :      2-Ply Braided Wire
Cover Material      :      PVC/Nitrile Blend
Dash Size      :      04
Inside Diameter      :      1/4 in
Length      :      1 ft
Material      :      Nitrile
Material Construction      :      Nitrile
Nominal Size      :      1/4 in
Outside Diameter      :      0.56 in
Pressure Rating      :      6500 psi
Product Type      :      Hydraulic Hose
Resistance Properties      :      Abrasion
SAE Rating      :      SAE 100R16/EN 857 2SC
Series      :      GH781
Sub Brand      :      MatchMate® Global
Temperature High      :      258.8 deg F
Temperature Low      :      -50.8 deg F
Wall Thickness      :      0.31 in
  • Dura-Tuff™ cover provides much higher abrasion-resistant leading to longer hose life
  • Eaton's MatchMate™ program provides identification markings on the hose, hose fittings and crimp dies for quick and easy assembly

Applications: For high pressure hydraulic systems with petroleum and water-glycol-based fluids for lubricating oils and water

  • pdfCatalog https://www.alaskarubbergroup.com//ASSETS/DOCUMENTS/ITEMS/EN/Aeroquip_FC35520_CAT.pdf
  • pdfCut Sheet https://www.alaskarubbergroup.com//ASSETS/DOCUMENTS/ITEMS/EN/Aeroquip_GH7814_SS.pdf
