Aeroquip® GH781-12R250 GH781-12R250

Aeroquip® GH781-12R250

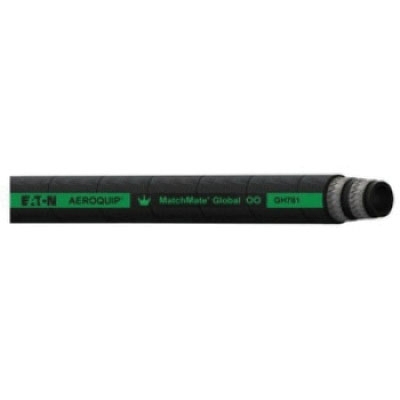

Aeroquip® MatchMate® Global GH781 Black Nitrile Braided Hydraulic Hose, 3/4 in, 1 ft L, 3485 psi

Add To Favorites
  1. pin-int

Aeroquip® MatchMate® Global Braided Hydraulic Hose, Series: GH781, Nominal Size: 3/4 in, Dash Size: 12, 1.13 in OD, 3/4 in ID, 0.37 in Thick Wall, 21 ft Length, 3485 psi, SAE Rating: SAE 100R16/EN 857 2SC, Material Construction: Nitrile, PVC/Nitrile Blend Cover, Construction: 2-Ply Braided Wire, Black, 4.72 in Bend Radius, Resistance Properties: Abrasion, -50.8 deg F Low, 258.8 deg F High

Attribute Type Configurator      :      Parent
Bend Radius      :      4.72 in
Color      :      Black
Construction      :      2-Ply Braided Wire
Cover Material      :      PVC/Nitrile Blend
Dash Size      :      12
Inside Diameter      :      3/4 in
Length      :      250 ft
Material      :      Nitrile
Material Construction      :      Nitrile
Nominal Size      :      3/4 in
Outside Diameter      :      1.13 in
Pressure Rating      :      3485 psi
Product Type      :      Hydraulic Hose
Resistance Properties      :      Abrasion
SAE Rating      :      SAE 100R16/EN 857 2SC
Series      :      GH781
Sub Brand      :      MatchMate® Global
Temperature High      :      258.8 deg F
Temperature Low      :      -50.8 deg F
Wall Thickness      :      0.37 in
  • Dura-Tuff™ cover provides much higher abrasion-resistant leading to longer hose life
  • Eaton's MatchMate™ program provides identification markings on the hose, hose fittings and crimp dies for quick and easy assembly

Applications: For high pressure hydraulic systems with petroleum and water-glycol-based fluids for lubricating oils and water

  • pdfCatalog https://www.alaskarubbergroup.com//ASSETS/DOCUMENTS/ITEMS/EN/Aeroquip_GH78112R250_CAT.pdf
