Aeroquip® GD1052641

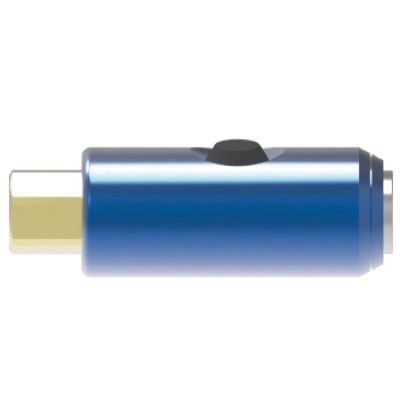

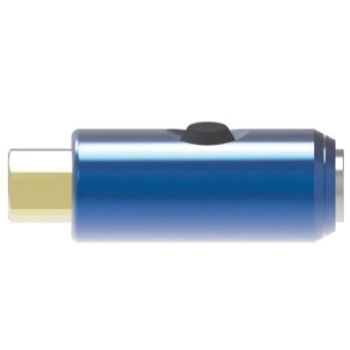

Aeroquip® Safeline Aluminum Coupling, 1/4 in Female Quick Disconnect x 1/4 in FNPT
- Manufacturer: Danfoss Power Solutions
- Brand: Aeroquip®
- ARGPN: GD1052641
- MPN: GD1052641
-
Available for delivery:
-
Available for pickup at
Anchorage, AK Branch:
-
Available for Danfoss Power Solutions factory-direct delivery:
-
Aeroquip® Coupling, Series: Safeline, Connection Type 1: Quick Disconnect, Gender 1: Female, Connection Size 1: 1/4 in, Connection Type 2: NPT, Gender 2: Female, Connection Size 2: 1/4 in, Hex Size: 0.67 in, 232 psi, Material Construction: Aluminum, Dimensions: 2.33 in L x 1.02 in W x 1.02 in H, Dimension Standards: ISO 6150 Series B, -4 to 212 deg F
| Connection Size 1 | : | 1/4 in |
| Connection Size 2 | : | 1/4 in |
| Connection Type 1 | : | Quick Disconnect |
| Connection Type 2 | : | NPT |
| Dimension Standards | : | ISO 6150 Series B |
| Dimensions | : | 2.33 in L x 1.02 in W x 1.02 in H |
| Gender 1 | : | Female |
| Gender 2 | : | Female |
| Hex Size | : | 0.67 in |
| Material | : | Aluminum |
| Material Construction | : | Aluminum |
| Pressure Rating | : | 232 psi |
| Series | : | Safeline |
| Shape | : | Coupling |
| Temperature Rating | : | -4 to 212 deg F |
Eaton's Safeline Series is an industrial interchange pneumatic coupling with push button safety feature designed for use with compressed air. Two-step disconnect procedure shuts off air supply and releases downstream air pressure before plug can be removed from socket/female, which prevents hose whip.
- Safe and easy to connect and disconnect
- Lightweight, compact ergonomic design
- Accepts 1/4 in ISO 6150 Series B and A-A-59439 plugs/males
- Accepts all US industrial plugs/males
- Buna-N seal material
Warranty: 3 Years Limited
Applications: For general pneumatics, air tools, industrial plants, maintenance and repair
