Aeroquip® 15.147-10-8 15.147-10-8

Aeroquip® 15.147-10-8

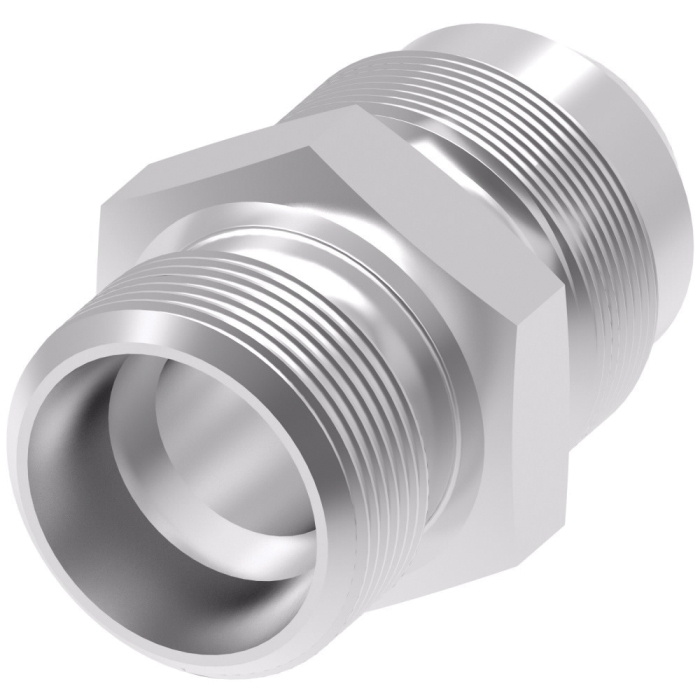

Aeroquip® 15.147 Dura-Kote Carbon Steel Straight Adapter, 12.7 mm Male Metric DIN 24 deg Tube x 1/2 in Male SAE 37 deg JIC Flare

  • Manufacturer: Danfoss Power Solutions
  • Brand: Aeroquip®
  • ARGPN: 15.147-10-8
  • MPN: 15.147-10-8
  • ARG Industrial Available for delivery: loading
  • ARG Industrial Available for pickup at Anchorage, AK Branch: loading
  • Available for Danfoss Power Solutions factory-direct delivery: loading
  • loading
  • Add to cart
Add To Favorites
  1. pin-int

Aeroquip® Straight Adapter, Series: 15.147, Connection Type 1: Metric DIN 24 deg Tube, Gender 1: Male, Connection Size 1: 12.7 mm, Thread Size 1: M18 x 1.5, Connection Type 2: SAE 37 deg JIC Flare, Gender 2: Male, Connection Size 2: 1/2 in, Thread Size 2: 3/4-16, Hex Size: 0.87 in, Dimension Standards: DIN 3901/3902 s.Rh, 3000 psi, Material Construction: Carbon Steel, Finish: Dura-Kote, 1.4 in Length, 0.87 in Width, 0.87 in Height, -40 to 250 deg F

Connection Size 1      :      12.7 mm
Connection Size 2      :      1/2 in
Connection Type      :      Metric~JIC
Connection Type 1      :      Metric DIN 24 deg Tube
Connection Type 2      :      SAE 37 deg JIC Flare
Dimension Standards      :      DIN 3901/3902 s.Rh
Finish      :      Dura-Kote
Fitting Type      :      Straight Adapter
Gender 1      :      Male
Gender 2      :      Male
Height      :      0.87 in
Hex Size      :      0.87 in
Length      :      1.4 in
Material      :      Steel
Material Construction      :      Carbon Steel
Pressure Rating      :      3000 psi
Series      :      15.147
Shape      :      Straight
Temperature Rating      :      -40 to 250 deg F
Thread Size 1      :      M18 x 1.5
Thread Size 2      :      3/4-16
Width      :      0.87 in

Applications: Hydraulic, instrumentation, chemical processing systems

  • pdfCatalog https://www.alaskarubbergroup.com//ASSETS/DOCUMENTS/ITEMS/EN/Aeroquip_2083-12-12S_CAT.pdf
