Aeroquip® 2018-8-8S 9100X8X8

Aeroquip® 2018-8-8S

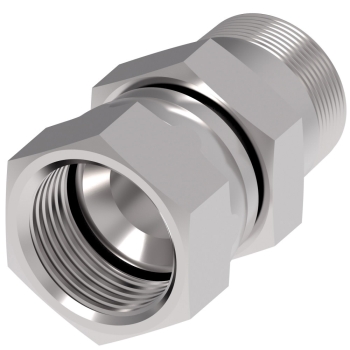

Aeroquip® 2018 Dura-Kote Carbon Steel Straight Adapter, 3/4 in Female SAE 37 deg JIC Flare Swivel x 1/2 in MNPTF

  • Manufacturer: Danfoss Power Solutions
  • Brand: Aeroquip®
  • ARGPN: 9100X8X8
  • MPN: 2018-8-8S
  • ARG Industrial Available for delivery: loading
  • ARG Industrial Available for pickup at Anchorage, AK Branch: loading
  • Available for Danfoss Power Solutions factory-direct delivery: loading
  • loading
  • Add to cart
Add To Favorites
  1. pin-int

Aeroquip® Straight Adapter, Series: 2018, Connection Type 1: SAE 37 deg JIC Flare Swivel, Gender 1: Female, Connection Size 1: 3/4 in, Thread Size 1: 3/4-16, Connection Type 2: NPTF, Gender 2: Male, Connection Size 2: 1/2 in, Thread Size 2: 1/2-14, Hex Size: 7/8 in, Dimension Standards: SAE J514, 4000 psi, Material Construction: Carbon Steel, Finish: Dura-Kote, 1.93 in Length, 7/8 in Width, 7/8 in Height, -40 to 250 deg F

Connection Size 1      :      3/4 in
Connection Size 2      :      1/2 in
Connection Type      :      JIC Swivel~NPT
Connection Type 1      :      SAE 37 deg JIC Flare Swivel
Connection Type 2      :      NPTF
Dimension Standards      :      SAE J514
Finish      :      Dura-Kote
Fitting Type      :      Straight Adapter
Gender 1      :      Female
Gender 2      :      Male
Height      :      7/8 in
Hex Size      :      7/8 in
Length      :      1.93 in
Material      :      Steel
Material Construction      :      Carbon Steel
Pressure Rating      :      4000 psi
Series      :      2018
Shape      :      Straight
Temperature Rating      :      -40 to 250 deg F
Thread Size 1      :      3/4-16
Thread Size 2      :      1/2-14
Width      :      7/8 in

Eaton has provided a comprehensive product line focus to be the #1 choice of Eaton channel partners and OE manufacturers for a select group of carbon steel adapters.

  • Improved and consistent corrosion resistance featuring Dura-Kote™

Applications: Chemical processing, food and beverage processing, marine/military, off-shore drilling, pulp and paper industries

  • pdfCatalog https://www.alaskarubbergroup.com//ASSETS/DOCUMENTS/ITEMS/EN/Aeroquip_210212-16S_CAT.pdf
  • pdfTechnical Drawing/Parts Diagram https://www.alaskarubbergroup.com//ASSETS/DOCUMENTS/ITEMS/EN/Aeroquip_2018-12-12S_TD.pdf
