Aeroquip® 4411-12-10S 4411-12-10S

Aeroquip® 4411-12-10S

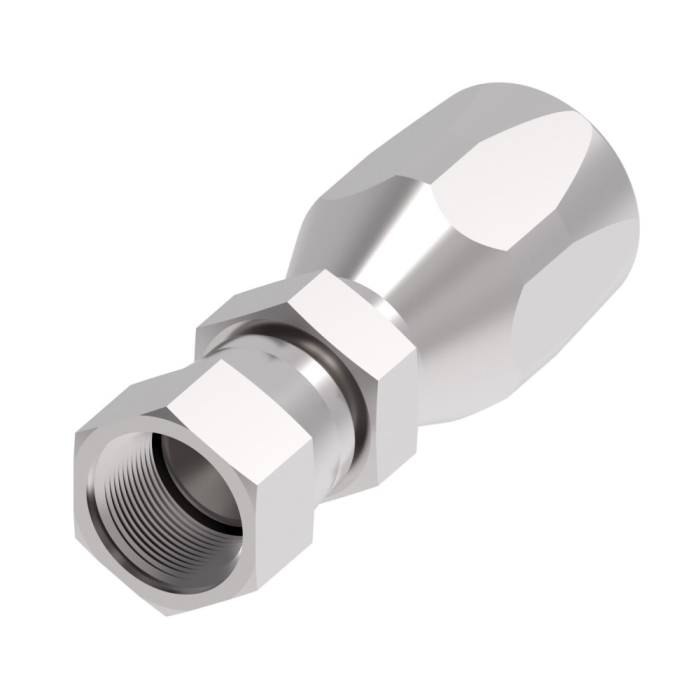

Aeroquip® 4411 Dura-Kote Carbon Steel Female SAE 37 deg JIC Swivel 100R5 Reusable Straight Hose Fitting, 5/8 x 3/4 in

  • Manufacturer: Danfoss Power Solutions
  • Brand: Aeroquip®
  • ARGPN: 4411-12-10S
  • MPN: 4411-12-10S
  • ARG Industrial Available for delivery: loading
  • ARG Industrial Available for pickup at Anchorage, AK Branch: loading
  • loading
  • Add to cart
Add To Favorites
  1. pin-int

Aeroquip® 100R5 Reusable Straight Hose Fitting, Series: 4411, Connection Type 1: Hose, Connection Size 1: 5/8 in, Hose Dash Size: 10, Connection Type 2: SAE 37 deg JIC Swivel, Gender 2: Female, Connection Size 2: 3/4 in, Nominal Size: 3/4 in, Thread Size 2: 1-1/16-12, Hex Size: 1-1/4 x 1-1/4 in, Cut-Off Factor: 1.91 in, Material Construction: Carbon Steel, Finish: Dura-Kote, For Use With: 1503, 2580, 2651, FC234, FC300, FC321, FC350, FC355, and FC802 Series Hoses, Dimensions: 3.19 in L

Connection Size 1      :      5/8 in
Connection Size 2      :      3/4 in
Connection Type      :      Hose~JIC Female Swivel
Connection Type 1      :      Hose
Connection Type 2      :      SAE 37 deg JIC Swivel
Cut-Off Factor      :      1.91 in
Dimensions      :      3.19 in L
Finish      :      Dura-Kote
Fitting Type      :      Straight Hose Fitting
For Use With      :      1503, 2580, 2651, FC234, FC300, FC321, FC350, FC355, and FC802 Series Hoses
Gender 2      :      Female
Hex Size      :      1-1/4 x 1-1/4 in
Hose Dash Size      :      10
Material      :      Steel
Material Construction      :      Carbon Steel
Nominal Size      :      3/4 in
Series      :      4411
Shape      :      Straight
Thread Size 2      :      1-1/16-12
  • pdfCatalog https://www.alaskarubbergroup.com//ASSETS/DOCUMENTS/ITEMS/EN/Aeroquip_210212-16S_CAT.pdf
  • pdfTechnical Drawing/Parts Diagram https://www.alaskarubbergroup.com//ASSETS/DOCUMENTS/ITEMS/EN/Aeroquip_4411-10-12S_TD.pdf
