Aeroquip® 4777-20S

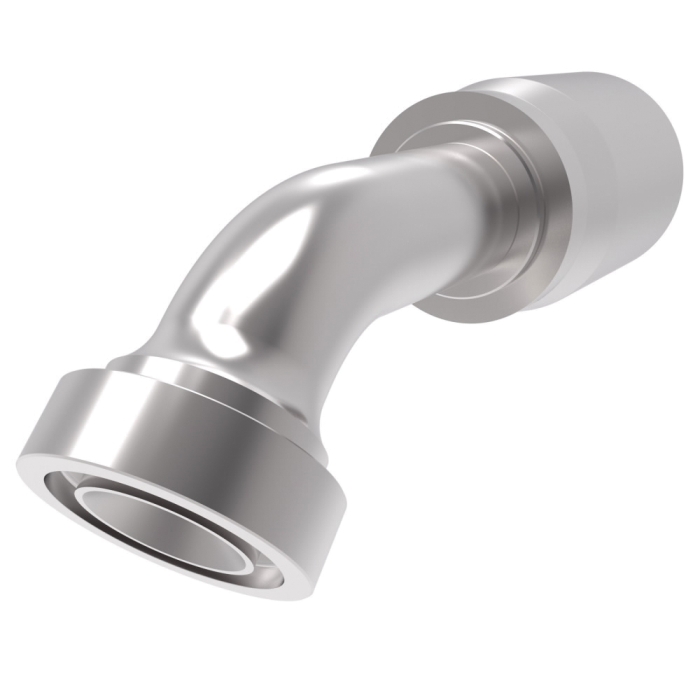

Aeroquip® 4777 Dura-Kote Carbon Steel SAE Code 61 Split Flange 100R5 Reusable 45 deg Short Elbow, 1-1/4 in

Manufacturer: Danfoss Power Solutions
Brand: Aeroquip®
ARGPN: 4777-20S

MPN: 4777-20S

Available for delivery:
Available for pickup at Anchorage, AK Branch:
Available for Danfoss Power Solutions factory-direct delivery:
Add to cart

Description
Specs
Documents

Aeroquip® 100R5 Reusable 45 deg Short Elbow, Series: 4777, Connection Type 1: Hose, Connection Size 1: 1-1/4 in, Hose Dash Size: 20, Connection Type 2: SAE Code 61 Flange, Connection Size 2: 1-1/4 in, Hex Size: 1-3/4 in, Cut-Off Factor: 2.21 in, Material Construction: Carbon Steel, Finish: Dura-Kote, For Use With: 302A, 303, 1503, 2580, 2651, FC234, FC300, FC321, FC350 and FC355 Series Hoses, Dimensions: 4.12 in L, Dimension Standards: SAE J518

Connection Size 1	:	1-1/4 in
Connection Size 2	:	1-1/4 in
Connection Type	:	Hose~Code 61 Flange
Connection Type 1	:	Hose
Connection Type 2	:	SAE Code 61 Flange
Cut-Off Factor	:	2.21 in
Dimension Standards	:	SAE J518
Dimensions	:	4.12 in L
Finish	:	Dura-Kote
Fitting Type	:	45 deg Elbow
For Use With	:	302A, 303, 1503, 2580, 2651, FC234, FC300, FC321, FC350 and FC355 Series Hoses
Hex Size	:	1-3/4 in
Hose Dash Size	:	20
Material	:	Steel
Material Construction	:	Carbon Steel
Series	:	4777
Shape	:	45 deg Elbow
