Aeroquip® 500024-12-10S 500024-12-10S

Aeroquip® 500024-12-10S

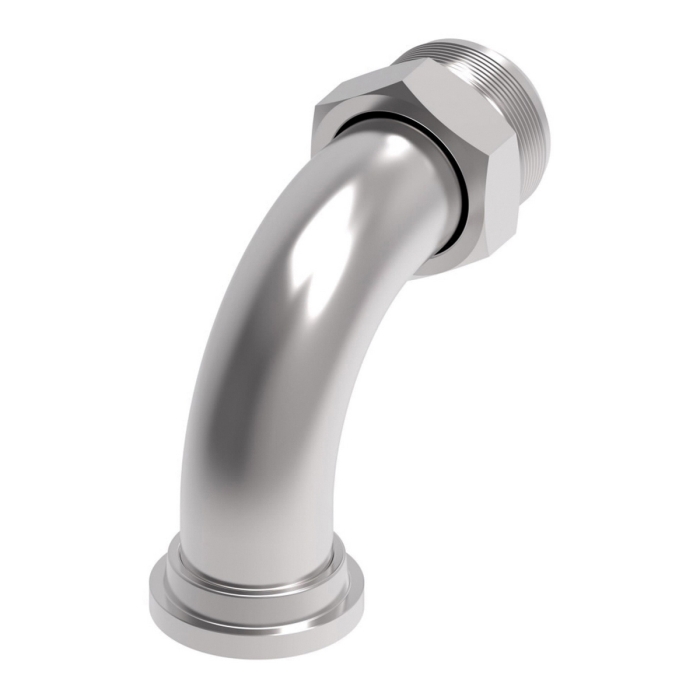

Aeroquip® 500024 Dura-Kote Carbon Steel 90 deg Elbow, 3/4 in SAE Code 61 Split Flange x 5/8 in Male SAE 37 deg JIC Flare

  • Manufacturer: Danfoss Power Solutions
  • Brand: Aeroquip®
  • ARGPN: 500024-12-10S
  • MPN: 500024-12-10S
  • ARG Industrial Available for delivery: loading
  • ARG Industrial Available for pickup at Anchorage, AK Branch: loading
  • Available for Danfoss Power Solutions factory-direct delivery: loading
  • loading
  • Add to cart
Add To Favorites
  1. pin-int

Aeroquip® 90 deg Elbow, Series: 500024, Connection Type 1: SAE Code 61 Flange, Connection Size 1: 3/4 in, Connection Type 2: SAE 37 deg JIC Flare, Gender 2: Male, Connection Size 2: 5/8 in, Thread Size 2: 7/8-14, Dimension Standards: SAE J514, Material Construction: Carbon Steel, Finish: Dura-Kote, 2.38 in Length, 2 in Width, 2 in Height, -65 to 400 deg F

Connection Size 1      :      3/4 in
Connection Size 2      :      5/8 in
Connection Type      :      Code 61~JIC
Connection Type 1      :      SAE Code 61 Flange
Connection Type 2      :      SAE 37 deg JIC Flare
Dimension Standards      :      SAE J514
Finish      :      Dura-Kote
Fitting Type      :      90 deg Elbow
Gender 2      :      Male
Height      :      2 in
Length      :      2.38 in
Material      :      Steel
Material Construction      :      Carbon Steel
Series      :      500024
Shape      :      90 deg Elbow
Temperature Rating      :      -65 to 400 deg F
Thread Size 2      :      7/8-14
Width      :      2 in

Applications: Chemical processing, food and beverage processing, marine/military, off-shore drilling, pulp and paper industries

  • pdfCatalog https://www.alaskarubbergroup.com//ASSETS/DOCUMENTS/ITEMS/EN/Aeroquip_210212-16S_CAT.pdf
  • pdfTechnical Drawing/Parts Diagram https://www.alaskarubbergroup.com//ASSETS/DOCUMENTS/ITEMS/EN/Aeroquip_500024-12-10S_TD.pdf
