Banjo® AF100 AF100

Banjo® AF100

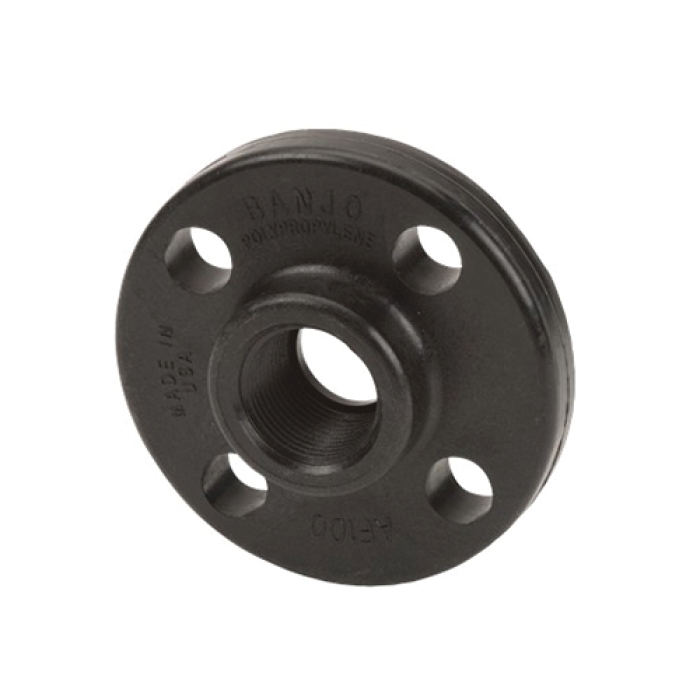

Banjo® AF100 Black Glass Reinforced Polypropylene Heavy-Duty ANSI Flange, 1 in FNPT

  • Manufacturer: Banjo Corporation
  • Brand: Banjo®
  • ARGPN: AF100
  • MPN: AF100
  • ARG Industrial Available for delivery: loading
  • ARG Industrial Available for pickup at Anchorage, AK Branch: loading
  • Available for Banjo Corporation factory-direct delivery: loading
  • loading
  • Add to cart
Add To Favorites
  1. pin-int

Banjo® Heavy-Duty ANSI Flange, Connection Type 1: NPT, Gender 1: Female, Connection Size 1: 1 in, 150 lb, 5/8 in Bolt Hole Diameter, 4 -Bolt Hole, 5/8 in Thick Flange, Material Construction: Glass Reinforced Polypropylene, Black, SCH 80, Dimensions: 4-1/4 in OD, -20 to 150 deg F

Bolt Hole Diameter      :      5/8 in
Color      :      Black
Connection Size 1      :      1 in
Connection Type 1      :      NPT
Dimensions      :      4-1/4 in OD
Flange Thickness      :      5/8 in
Gender 1      :      Female
Material      :      Polypropylene
Material Construction      :      Glass Reinforced Polypropylene
Number of Bolt Holes      :      4
Pressure Rating      :      150 lb
Schedule      :      SCH 80
Shape      :      Flange
Temperature Rating      :      -20 to 150 deg F
  • Standard lead times
  • Heavy-duty

Applications: For fluids

  • pdfCatalog https://www.alaskarubbergroup.com//ASSETS/DOCUMENTS/ITEMS/EN/Banjo_100CAP_SS_CAT.pdf
  • pdfTechnical Drawing/Parts Diagram https://www.alaskarubbergroup.com//ASSETS/DOCUMENTS/ITEMS/EN/Banjo_AF100_TD.pdf
