Banjo® MV220SL MV220SL

Banjo® MV220SL

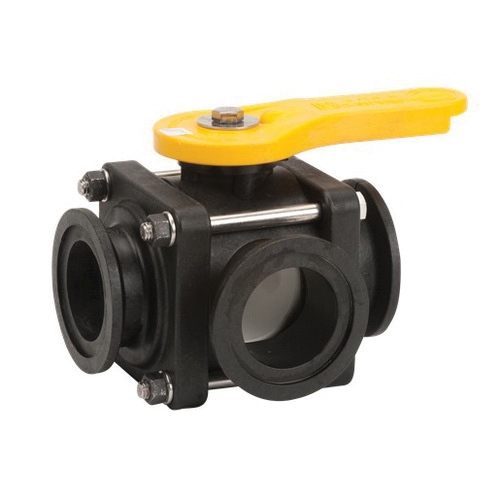

Banjo® MV220SL Polypropylene 3-Way Side Load Full-Port Manifold Ball Valve, 2 in Flange, 100 psi

  • Manufacturer: Banjo Corporation
  • Brand: Banjo®
  • ARGPN: MV220SL
  • MPN: MV220SL
  • ARG Industrial Available for delivery: loading
  • ARG Industrial Available for pickup at Anchorage, AK Branch: loading
  • Available for Banjo Corporation factory-direct delivery: loading
  • loading
  • Add to cart
Add To Favorites
  1. pin-int

Banjo® 3-Way Side Load Full-Port Manifold Ball Valve, Nominal Size: 2 in, Connection Type: Flange, Actuator Type: Handle, Material Construction: Polypropylene, PTFE Seat Trim, 5-11/32 in Height, 5-3/16 in Width, 100 psi

Actuator Type      :      Handle
Connection Type      :      Flange
Height      :      5-11/32 in
Material      :      Polypropylene
Material Construction      :      Polypropylene
Nominal Size      :      2 in
Pressure Rating      :      100 psi
Product Type      :      Ball Valve
Trim Material      :      PTFE Seat
Width      :      5-3/16 in
  • Ball is diamond turned, after molding, to make it spherically perfect, which provides precise contact between ball and seats
  • FKM seal
  • Polypropylene is reinforced with fiberglass for additional strength
  • PTFE self-lubricating stem bushings and seats cannot stick or bind
  • Self-aligning ball moves freely against the PTFE seats for smooth operation
  • Stainless steel bolts
  • Directional flow, right or left
  • Valve cannot be turned off to stop flow
  • pdfCatalog https://www.alaskarubbergroup.com//ASSETS/DOCUMENTS/ITEMS/EN/Banjo_VA150_CAT.pdf
  • pdfTechnical Drawing/Parts Diagram https://www.alaskarubbergroup.com//ASSETS/DOCUMENTS/ITEMS/EN/Banjo_MV220SL_TD.pdf
