Brennan 6410-04-02-O 6410-04-02

Brennan 6410-04-02-O

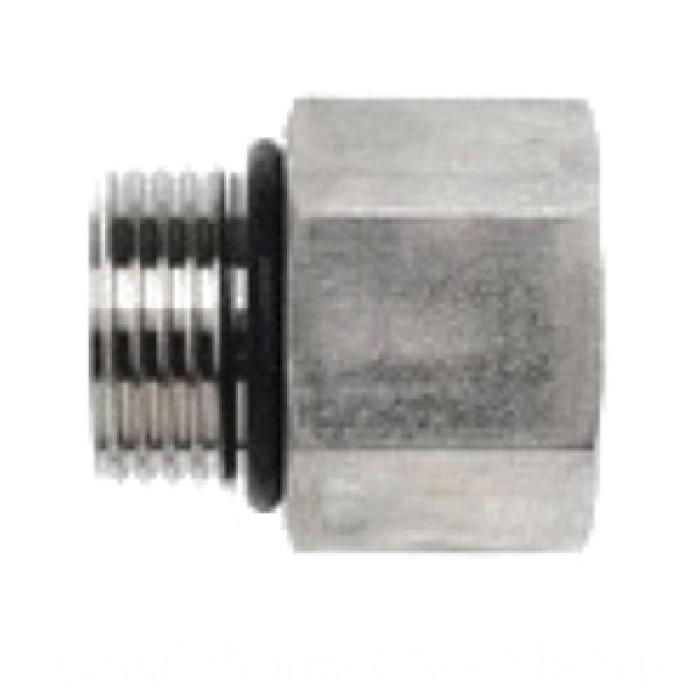

Brennan 6410-04-02-O Straight Reducer, 1/4 in Male SAE ORB x 1/8 in Female SAE ORB, Steel

  • Manufacturer: Brennan Industries
  • Brand: Brennan
  • ARGPN: 6410-04-02
  • MPN: 6410-04-02-O
  • ARG Industrial Available for delivery: loading
  • ARG Industrial Available for pickup at Anchorage, AK Branch: loading
  • Available for Brennan Industries factory-direct delivery: loading
  • loading
  • Add to cart
Add To Favorites
  1. pin-int

Brennan Straight Reducer, Series: 6410-O, Fitting Type: Reducer, Connection Size 1: 1/4 in, Connection Type 1: Male SAE ORB, Connection Size 2: 1/8 in, Connection Type 2: Female SAE ORB, Connection Type: Male SAE ORB|Female SAE ORB, Steel, Material Construction: Steel, CR3 Zinc-Plated, 7/16-20 x 5/16-24 Thread, 0.562 in Hex, 1.08 in L, Maximum Operating Pressure: 7500 psi

Connection Size 1      :      1/4 in
Connection Size 2      :      1/8 in
Connection Type      :      Male SAE ORB|Female SAE ORB
Connection Type 1      :      Male SAE ORB
Connection Type 2      :      Female SAE ORB
Dimensions      :      1.08 in L
Finish      :      CR3 Zinc-Plated
Fitting Type      :      Reducer
Hex Size      :      0.562 in
Material      :      Steel
Material Construction      :      Steel
Maximum Operating Pressure      :      7500 psi
Series      :      6410-O Series
Thread Size      :      7/16-20 x 5/16-24
  • pdfCatalog https://www.alaskarubbergroup.com//ASSETS/DOCUMENTS/ITEMS/EN/BRENNAN_0302-04_Catalog.pdf
  • pdfLine Drawing https://www.alaskarubbergroup.com//ASSETS/DOCUMENTS/ITEMS/EN/BRENNAN_6410-03-04-O_Line_Drawing.pdf
