Brennan 6565-20-20 6565-20-20

Brennan 6565-20-20

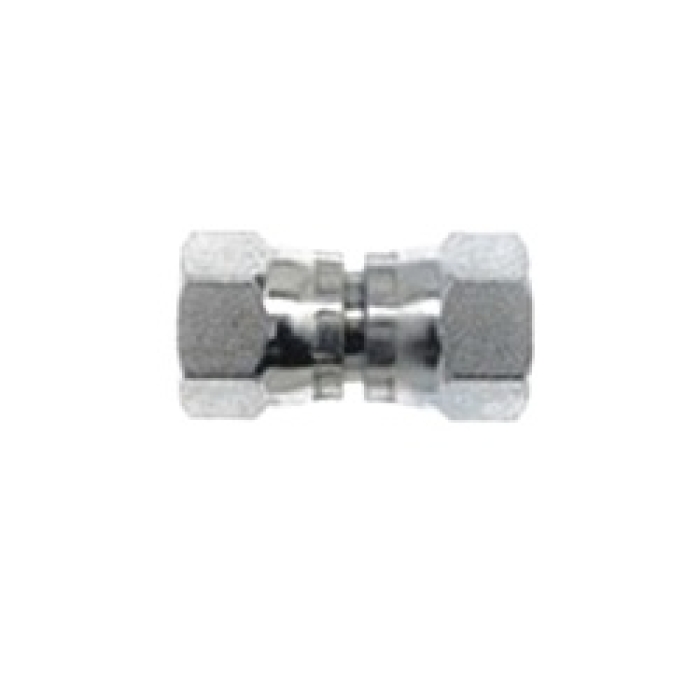

Brennan 6565-20-20 Straight Adapter, 1-1/4 in Female SAE 37 deg JIC Swivel x 1-1/4 in Female SAE 37 deg JIC Swivel

  • Manufacturer: Brennan Industries
  • Brand: Brennan
  • ARGPN: 6565-20-20
  • MPN: 6565-20-20
  • ARG Industrial Available for delivery: loading
  • ARG Industrial Available for pickup at Anchorage, AK Branch: loading
  • Available for Brennan Industries factory-direct delivery: loading
  • loading
  • Add to cart
Add To Favorites
  1. pin-int

Brennan Straight Adapter, Series: 6565, Fitting Type: Adapter, Connection Size 1: 1-1/4 in, Connection Type 1: Female SAE 37 deg JIC Swivel, Connection Size 2: 1-1/4 in, Connection Type 2: Female SAE 37 deg JIC Swivel, Connection Type: Female JIC Swivel|Female JIC Swivel, Steel, Material Construction: Steel, 1-5/8-12 Thread, 2 in Hex, 2.56 in L, Maximum Operating Pressure: 3600 psi

Connection Size 1      :      1-1/4 in
Connection Size 2      :      1-1/4 in
Connection Type      :      Female JIC Swivel|Female JIC Swivel
Connection Type 1      :      Female SAE 37 deg JIC Swivel
Connection Type 2      :      Female SAE 37 deg JIC Swivel
Dimensions      :      2.56 in L
Fitting Type      :      Adapter
Hex Size      :      2 in
Material      :      Steel
Material Construction      :      Steel
Maximum Operating Pressure      :      3600 psi
Series      :      6565 Series
Thread Size      :      1-5/8-12
  • pdfCatalog https://www.alaskarubbergroup.com//ASSETS/DOCUMENTS/ITEMS/EN/BRENNAN_0302-04_Catalog.pdf
  • pdfLine Drawing https://www.alaskarubbergroup.com//ASSETS/DOCUMENTS/ITEMS/EN/BRENNAN_6565-04-04-SS_Line_Drawing.pdf
