Brennan C6803-08-08-08-NWO-FG C6803-08-08-08

Brennan C6803-08-08-08-NWO-FG

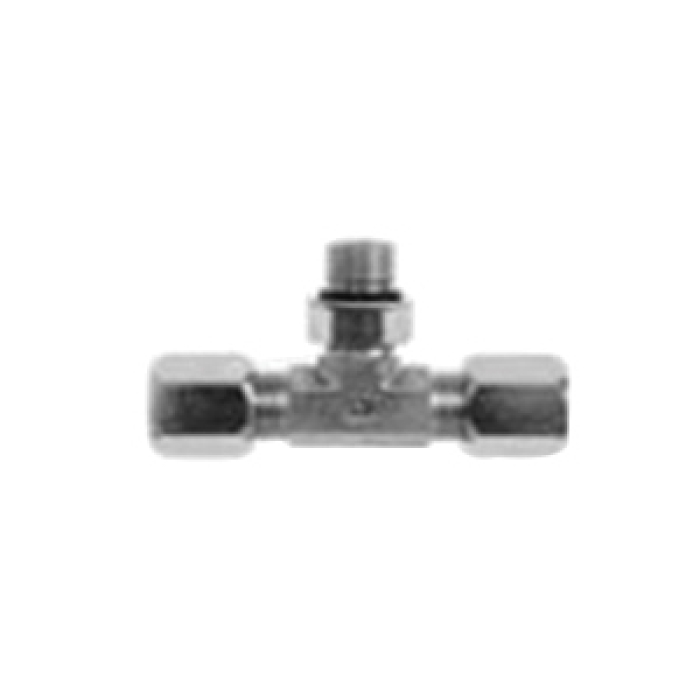

Brennan C6803-NWO-FG Forged Steel Flareless Tee, 1/2 in Compression Bite x 1/2 in Compression Bite x 1/2 in Male Adjustable ORB

  • Manufacturer: Brennan Industries
  • Brand: Brennan
  • ARGPN: C6803-08-08-08
  • MPN: C6803-08-08-08-NWO-FG
  • ARG Industrial Available for delivery: loading
  • ARG Industrial Available for pickup at Anchorage, AK Branch: loading
  • Available for Brennan Industries factory-direct delivery: loading
  • loading
  • Add to cart
Add To Favorites
  1. pin-int

Brennan Flareless Tee, Series: C6803-NWO-FG, Connection Type 1: Compression Bite, Connection Size 1: 1/2 in, Thread Size 1: 3/4-16, Connection Type 2: Compression Bite, Connection Size 2: 1/2 in, Thread Size 2: 3/4-16, Connection Type 3: Adjustable ORB, Gender 3: Male, Connection Size 3: 1/2 in, Thread Size 3: 3/4-16, Hex Size: 7/8 in, Material Construction: Forged Steel, Dimensions: 0.305 in D, Dimension Standards: SAE 080429, MS 51841

California residents see Prop 65 WARNINGS

Connection Size 1      :      1/2 in
Connection Size 2      :      1/2 in
Connection Size 3      :      1/2 in
Connection Type 1      :      Compression Bite
Connection Type 2      :      Compression Bite
Connection Type 3      :      Adjustable ORB
Dimension Standards      :      SAE 080429, MS 51841
Dimensions      :      0.305 in D
Gender 3      :      Male
Hex Size      :      7/8 in
Material      :      Steel
Material Construction      :      Forged Steel
Series      :      C6803-NWO-FG
Shape      :      Tee
Thread Size 1      :      3/4-16
Thread Size 2      :      3/4-16
Thread Size 3      :      3/4-16
  • pdfCatalog https://www.alaskarubbergroup.com//ASSETS/DOCUMENTS/ITEMS/EN/Brennan_C6400-04-04-O_CAT.pdf
  • pdfTechnical Drawing/Parts Diagram https://www.alaskarubbergroup.com//ASSETS/DOCUMENTS/ITEMS/EN/Brennan_C6803-08-08-08-NWO-FG_TD.pdf
