Brennan DP6400-04-O DP6400-04

Brennan DP6400-04-O

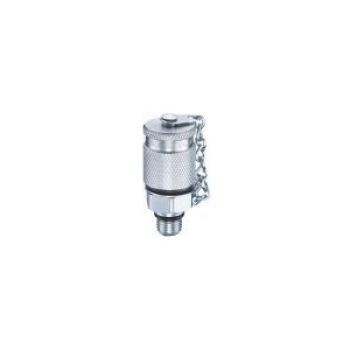

Brennan DP6400-04-O Nickel-Plated Steel/Zinc Test Coupling with Protective Cap, 7/16 UNF, For Hydraulic Oils and Other Mineral-Based Fluids

  • Manufacturer: Brennan Industries
  • Brand: Brennan
  • ARGPN: DP6400-04
  • MPN: DP6400-04-O
  • ARG Industrial Available for delivery: loading
  • ARG Industrial Available for pickup at Anchorage, AK Branch: loading
  • loading
  • Add to cart
Add To Favorites
  1. pin-int

Brennan Test Coupling with Protective Cap, Connection Type 1: Threaded, Connection Size 1: 7/16 in, Thread Size 1: 7/16 UNF, For Use With: Hydraulic Oils and Other Mineral-Based Fluids, 9137 psi, Material Construction: Steel/Zinc, Finish: Nickel-Plated, 1.86 in Height

California residents see Prop 65 WARNINGS

Connection Size 1      :      7/16 in
Connection Type 1      :      Threaded
Finish      :      Nickel-Plated
For Use With      :      Hydraulic Oils and Other Mineral-Based Fluids
Height      :      1.86 in
Material      :      Steel
Material Construction      :      Steel/Zinc
Pressure Rating      :      9137 psi
Product Type      :      Test Coupling
Thread Size 1      :      7/16 UNF
  • Carbon steel test point with stainless steel ball check
  • Self-locking protective metal cap
  • Connection under pressure to 5800 psi
  • Vibration safety O-ring of NBR in cap
  • Internal sealing FKM O-ring
  • Temperature range from -4 to 392 deg F
  • Taper type-D seal
  • pdfCatalog https://www.alaskarubbergroup.com//ASSETS/DOCUMENTS/ITEMS/EN/Brennan_DP6400-04-O_CAT.pdf
  • pdfTechnical Drawing/Parts Diagram https://www.alaskarubbergroup.com//ASSETS/DOCUMENTS/ITEMS/EN/Brennan_DP2404-02_TD.pdf
