Brennan FS6809-20-20-NWO-FG

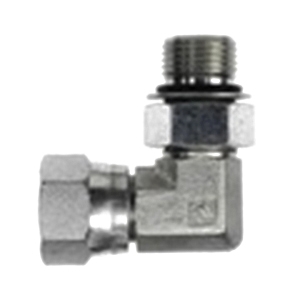

Brennan FS6809-NWO-FG Forged Steel 90 deg Adjustable Elbow, 1-1/4 in Female ORFS Swivel x 1-1/4 in Male ORB

Manufacturer: Brennan Industries
Brand: Brennan
ARGPN: FS6809-20-20

MPN: FS6809-20-20-NWO-FG

Available for delivery:
Available for pickup at Anchorage, AK Branch:
Add to cart

Description
Specs
Documents

Brennan 90 deg Adjustable Elbow, Series: FS6809-NWO-FG, Connection Type 1: ORFS Swivel, Gender 1: Female, Connection Size 1: 1-1/4 in, Thread Size 1: 1-11/16-12, Connection Type 2: ORB, Gender 2: Male, Connection Size 2: 1-1/4 in, Thread Size 2: 1-5/8-12, Hex Size: 1-7/8 in, Dimension Standards: SAE 520281, 4000 psi, Material Construction: Forged Steel

California residents see Prop 65 WARNINGS

Connection Size 1	:	1-1/4 in
Connection Size 2	:	1-1/4 in
Connection Type	:	ORFS~ORB
Connection Type 1	:	ORFS Swivel
Connection Type 2	:	ORB
Dimension Standards	:	SAE 520281
Fitting Type	:	90 deg Elbow
Gender 1	:	Female
Gender 2	:	Male
Hex Size	:	1-7/8 in
Material	:	Steel
Material Construction	:	Forged Steel
Pressure Rating	:	4000 psi
Series	:	FS6809-NWO-FG
Shape	:	90 deg Elbow
Thread Size 1	:	1-11/16-12
Thread Size 2	:	1-5/8-12
