Coilhose® N38-254A

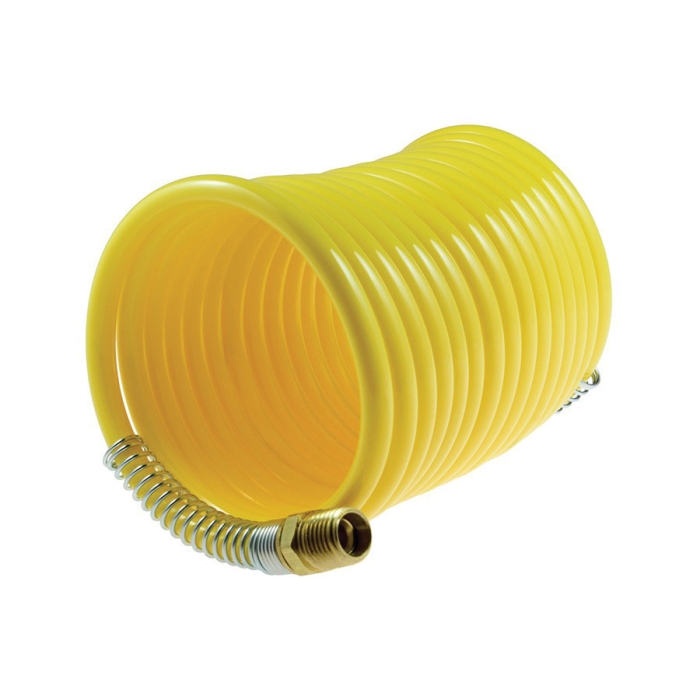

Coilhose® N38 Yellow Nylon Coiled Air Hose, 25 ft L, 1/4 in Rigid MPT x MPT Swivel

Manufacturer: Coilhose Pneumatics
Brand: Coilhose®
ARGPN: N38-254A

MPN: N38-254A

Available for delivery:
Available for pickup at Anchorage, AK Branch:
Add to cart

Description
Specs
Features
Documents

Coilhose® Coiled Air Hose, Series: N38, Nominal Size: 1/4 in, Connection Type: Rigid MPT x MPT Swivel, 0.47 in OD, 0.37 in ID, 0.45 in Thick Wall, 25 ft Length, 165 psi, Material Construction: Nylon, Yellow, -60 deg F Low, 200 deg F High

Color	:	Yellow
Connection Type	:	Rigid MPT x MPT Swivel
Inside Diameter	:	0.37 in
Length	:	25 ft
Material	:	Nylon
Material Construction	:	Nylon
Nominal Size	:	1/4 in
Outside Diameter	:	0.47 in
Pressure Rating	:	165 psi
Product Type	:	Air Hose
Series	:	N38
Temperature High	:	200 deg F
Temperature Low	:	-60 deg F
Wall Thickness	:	0.45 in

Coilhose® Pneumatics manufactures nylon air hose from tough, abrasion-resistant nylon material. Nylon offers a large temperature range of -60 to 200 deg F. The stiffness of nylon also creates a high retraction force, allowing for the coils to store quickly out of the workspace. Coilhose® Pneumatics nylon coils are equipped with strong brass fittings that are machined in-house out of quality brass. All assemblies are equipped with a spring guard to prevent kinking at the fitting.

Extruded from quality nylon resin
High-quality brass fittings provide strong and durable connection
Swivel fittings feature factory applied thread sealant
All coils are equipped with spring strain reliefs (except N34)
Extruded in USA

Catalog https://www.alaskarubbergroup.com//ASSETS/DOCUMENTS/ITEMS/EN/Coilhose_NC0216-100K_CAT.pdf
