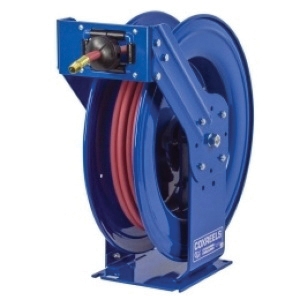

Coxreels THP-N-150 THP-N-150

Coxreels THP-N-150

Coxreels T Powder-Coated Heavy-Duty Steel Specialty Hose Reel, 1/4 in ID x 9/16 in OD, 50 ft L, 5000 psi

  • Manufacturer: Coxreels
  • Brand: Coxreels
  • ARGPN: THP-N-150
  • MPN: THP-N-150
  • ARG Industrial Available for delivery: loading
  • ARG Industrial Available for pickup at Anchorage, AK Branch: loading
  • Available for Coxreels factory-direct delivery: loading
  • loading
  • Add to cart
Add To Favorites
  1. pin-int

Coxreels Specialty Hose Reel, Series: T, 50 ft Length Hose, 1/4 in Hose Inside Diameter, 9/16 in Hose Outside Diameter, Nominal Size: 1/4 in, Winding Method: Spring Return, Material Construction: Heavy-Duty Steel, Finish: Powder-Coated, Wall Mount, 250 deg F, 5000 psi, Dimensions: 19.5 in L x 9.38 in W x 21.25 in H

California residents see Prop 65 WARNINGS

Dimensions      :      19.5 in L x 9.38 in W x 21.25 in H
Finish      :      Powder-Coated
Hose Inside Diameter      :      1/4 in
Hose Length      :      50 ft
Hose Outside Diameter      :      9/16 in
Material      :      Steel
Material Construction      :      Heavy-Duty Steel
Mounting Type      :      Wall
Nominal Size      :      1/4 in
Pressure Rating      :      5000 psi
Product Type      :      Hose Reel
Series      :      T
Temperature Rating      :      250 deg F
Winding Method      :      Spring Return

Coxreels T Series truck-mount spring driven hose reels are the toughest hose reels in the spring driven line. The extra-large chassis with dual pedestal-style arms and Coxreels super hub provides triple axle support while reducing vibration and strengthening the structural integrity of the reel. Making it ideal for off-road applications that demand reliability in the most abusive and demanding environments.

  • Professional-grade heavy-duty steel construction
  • Rolled edges and ribbed discs provide strength and safety
  • Machined from solid brass 90 deg full-flow NPT swivel for simple seal maintenance and fast and easy hose installation, no need to remove the reel from its mount
  • Lubricated and enclosed cartridge-style motor is easily removable for safe and convenient maintenance
  • Heavy-duty CNC robotically spun and ribbed discs with rolled edges for greater strength, durability, hose protection and operator safety
  • Versatile guide arm adjusts to wall, floor, ceiling and vehicle mounting positions
  • Long-lasting, chip-resistant and rust inhibiting CPC powder-coat finish, multi-position lock ratchet mechanism and lubricated precision bearings
  • Built for rugged mobile applications
  • Guide arm adjusts to wall, floor, vehicle and overhead positions
  • Enclosed factory tuned and matched cartridge-style spring motor
  • Non-corrosive stainless steel spring, pawl and zinc-plated ratchet
  • Made in USA

Warranty: 2 Years

  • pdfCatalog https://www.alaskarubbergroup.com//ASSETS/DOCUMENTS/ITEMS/EN/Coxreels_ENN350_CAT.pdf
