CSI 3-06546 3-06546

CSI 3-06546

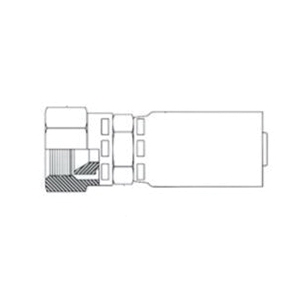

CSI 3 Series Trivalent Zinc-Plated Female 37 deg JIC Swivel Crimp Straight Hose Fitting, 3/8 in

  • Manufacturer: Couplamatic Systems Inc
  • Brand: CSI
  • ARGPN: 3-06546
  • MPN: 3-06546
  • ARG Industrial Available for delivery: loading
  • ARG Industrial Available for pickup at Anchorage, AK Branch: loading
  • Available for Couplamatic Systems Inc factory-direct delivery: loading
  • loading
  • Add to cart
Add To Favorites
  1. pin-int

CSI Crimp Straight Hose Fitting, Series: 3, Connection Type 1: Hose, Connection Size 1: 3/8 in, Hose Dash Size: 06, Connection Type 2: 37 deg JIC Swivel, Gender 2: Female, Connection Size 2: 3/8 in, Nominal Size: 3/8 in, Thread Size 2: 9/16-18, Hex Size: 3/4 in, Finish: Trivalent Zinc-Plated, For Use With: 100R7 (H7, H7NC, H7TL, H7TLNC), 100R8 (HS8, HS8NC) and 100R18 (R18) Thermoplastic Hydraulic Hoses

Connection Size 1      :      3/8 in
Connection Size 2      :      3/8 in
Connection Type      :      Hose~JIC Female Swivel
Connection Type 1      :      Hose
Connection Type 2      :      37 deg JIC Swivel
Finish      :      Trivalent Zinc-Plated
Fitting Type      :      Straight Hose Fitting
For Use With      :      100R7 (H7, H7NC, H7TL, H7TLNC), 100R8 (HS8, HS8NC) and 100R18 (R18) Thermoplastic Hydraulic Hoses
Gender 2      :      Female
Hex Size      :      3/4 in
Hose Dash Size      :      06
Nominal Size      :      3/8 in
Series      :      3
Shape      :      Straight
Thread Size 2      :      9/16-18

Hydraulic hose ends for use with thermoplastic hydraulic hose. 100R7 (H7, H7NC, H7TL, H7TLNC), 100R8 (HS8, HS8NC) and 100R18 (R18). Coupling may be used in Couplamatic Systems Inc, Synflex and Parker Hannifin swage machines. Thermoplastic couplings may be swaged or crimped.

  • Not for use on reduced OD 100R7
  • pdfCatalog https://www.alaskarubbergroup.com//ASSETS/DOCUMENTS/ITEMS/EN/CSI_R5208X8_CAT.pdf
