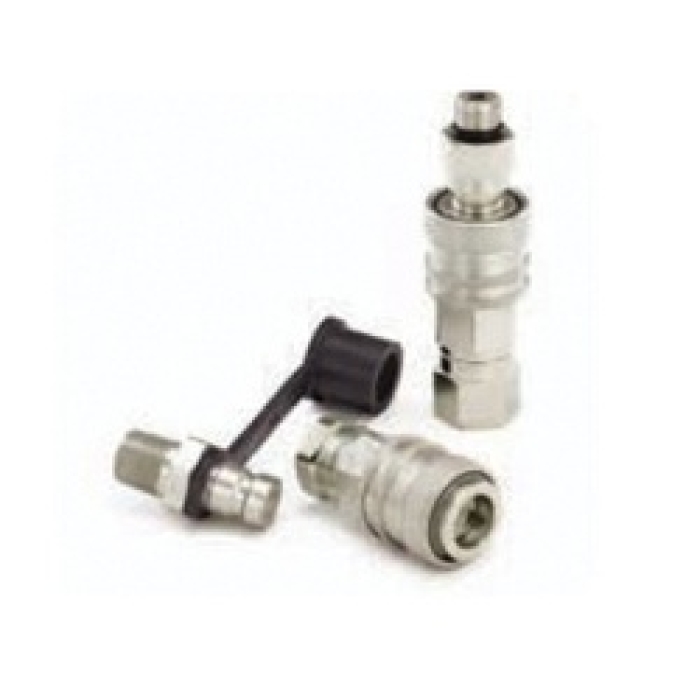

Danfoss FD90-1004-03-04

Eaton's FD90 Series diagnostic coupling is designed to connect and disconnect pressure gauges to hydraulic systems, eliminating the need for permanent gauges. The maximum operating pressure is 7000 psi.

Danfoss Hansen™ and Gromelle™ Diagnostic Coupling, Series: FD90 Series, Coupling Fitting, 1/4 in Connection Size 1, Male Connection Type 1, 3/8 in Connection Size 2, Male SAE O-ring Connection Type 2, Male |Male SAE ORB Connection, Carbon Steel, Steel Material Construction, Zinc Trivalent-Plated, 3/8-24 Thread, 0.62 in Hex, SAE J1502 Dimension Standards, 1.52 in L, 7000 psi Maximum Operating Pressure, Additional Information: Buna-N Seal

Additional Information	:	Buna-N Seal
Connection Size 1	:	1/4 in
Connection Size 2	:	3/8 in
Connection Type	:	Male |Male SAE ORB
Connection Type 1	:	Male
Connection Type 2	:	Male SAE O-ring
Dimension Standards	:	SAE J1502
Dimensions	:	1.52 in L
Finish	:	Zinc Trivalent-Plated
Fitting Type	:	Coupling
Hex Size	:	0.62 in
Material	:	Carbon Steel
Material Construction	:	Steel
Maximum Operating Pressure	:	7000 psi
Series	:	FD90 Series
Thread Size	:	3/8-24

Automatic sleeve for one hand push-to-connect operation|Flush face valving provides minimal fluid loss and low air inclusion|Self-sealing valve design allows connection and disconnection at 500 psi|Broad range of end configurations for system accessibility|Standard O-ring and back up ring - field replaceable seal kits|Diagnostic pressure testing for hydraulic systems
