Dixon® AM21

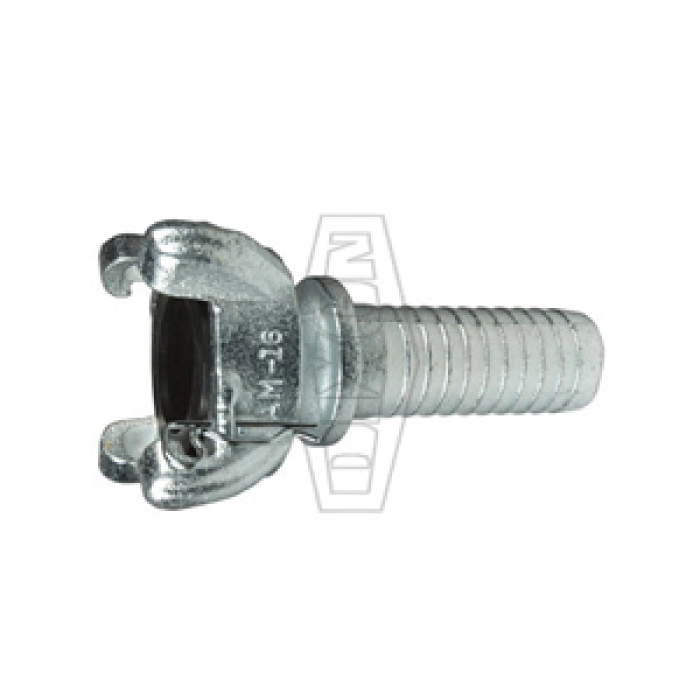

Dixon® Air King™ 4-Lug Hose End, Connection Type 1: Hose, Connection Size 1: 1-1/2 in, 150 psi, Material Construction: Iron, Dimensions: 5-7/8 in L, 70 deg F, For Use With: Boss™ Clamps

California residents see Prop 65 WARNINGS

• Safety clip included
• Supplied with rubber washer AWR4
• Use of supplied safety clip guarantees the fittings are properly connected because the safety pin will not go through the holes in mating fittings until couplings are locked in place
• Only one Air King™ safety clip or wire-type retainer is required for each Air King™ universal coupling
• Air King™ meets pressure requirements as specified in A-A-59553 commercial item description superseding Mil Spec.WWC-633D

Applications: For air and water service only

Safety Notes:

• Warning: Never use any Air King coupling for steam service!
• None of Dixon's catalog information is to be interpreted to mean that this type of coupling is suitable for use on steam hose.
• Caution: Must use safety clips.
• Pressure rating given at ambient temperature 70 deg F.

• Catalog https://www.alaskarubbergroup.com//ASSETS/DOCUMENTS/ITEMS/EN/Dixon_AM16_CAT.pdf
• Cut Sheet https://www.alaskarubbergroup.com//ASSETS/DOCUMENTS/ITEMS/EN/Dixon_AM16_SS.pdf
• Technical Drawing/Parts Diagram https://www.alaskarubbergroup.com//ASSETS/DOCUMENTS/ITEMS/EN/Dixon_AM21_TD.pdf

• Video
