Dixon® PL500 PL500

Dixon® PL500

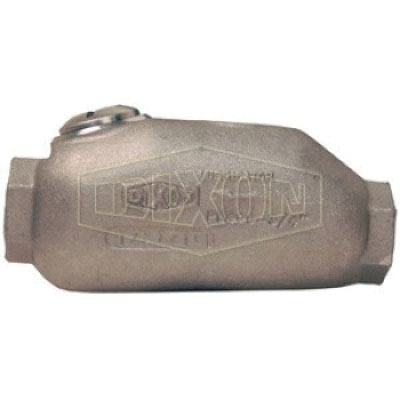

Dixon® PL500 In-Line Oil Lubricator, 1 in FPT Inlet, 1 in FPT Outlet, 100 scfm, 16 fl-oz Capacity

  • Manufacturer: Dixon Valve & Coupling
  • Brand: Dixon®
  • ARGPN: PL500
  • MPN: PL500
  • ARG Industrial Available for delivery: loading
  • ARG Industrial Available for pickup at Anchorage, AK Branch: loading
  • Available for Dixon Valve & Coupling factory-direct delivery: loading
  • loading
  • Add to cart
Add To Favorites
  1. pin-int

Dixon® In-Line Oil Lubricator, Inlet Size: 1 in, Outlet Size: 1 in, Inlet Connection Type: FPT, Outlet Connection Type: FPT, 100 scfm, 250 psi, Lubricant Capacity: 16 fl-oz, Material Construction: Aluminum

California residents see Prop 65 WARNINGS

Flow Rate      :      100 scfm
Inlet Connection Type      :      FPT
Inlet Size      :      1 in
Lubricant Capacity      :      16 fl-oz
Material      :      Aluminum
Material Construction      :      Aluminum
Pressure Rating      :      250 psi
Product Type      :      In-Line Lubricator
  • Transparent sight disc allows visual inspection of oil level
  • Oil flow regulated by screwdriver screw adjustment
  • Minimum flow rate is 30 scfm
  • Use any petroleum-based, non-detergent lightweight oil (SAE 10/150SSU) which will readily break up into a mist, i.e., Mobil DTE light or comparable oil
  • Each time an air tool is operated, a fine mist of oil is injected into it along with the air from the compressor
  • Installation is recommended within 25 ft of the tool to be lubricated

Applications: Designed to protect portable or stationary air tools by efficiently oiling the tool mechanisms

Safety Notes: Not recommended for constant flow applications.

  • For reciprocating tools only.
  • Do not use any synthetic oil or oils containing additives or solvents.
    • pdfCatalog https://www.alaskarubbergroup.com//ASSETS/DOCUMENTS/ITEMS/EN/Dixon_F4PSKIT_CAT.pdf
    • pdfCut Sheet https://www.alaskarubbergroup.com//ASSETS/DOCUMENTS/ITEMS/EN/Dixon_700013016_SS.pdf
    • pdfInstallation Instructions https://www.alaskarubbergroup.com//ASSETS/DOCUMENTS/ITEMS/EN/Dixon_PL500_II.pdf
