Dixon® PPD200 PPD200

Dixon® PPD200

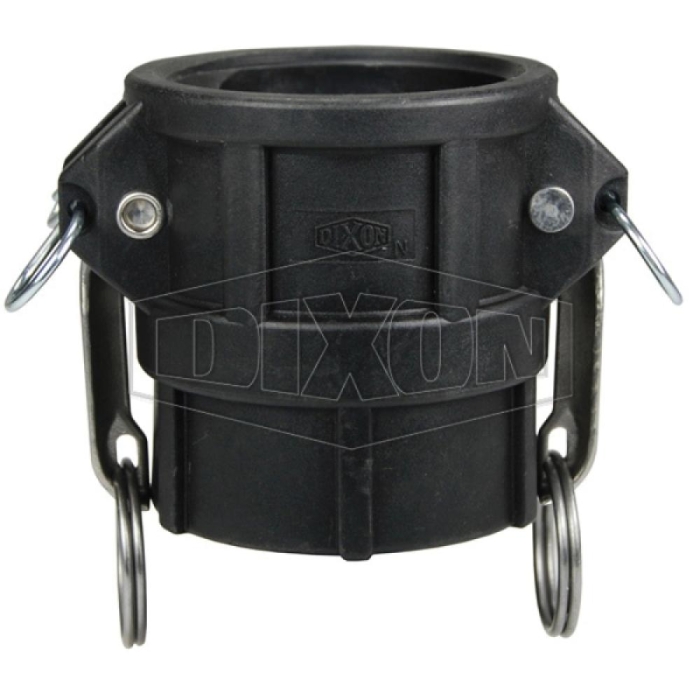

Dixon® PPD200 Cam and Groove Coupler, 2 in Type D x 2 in FNPT, Polypropylene

  • Manufacturer: Dixon Valve & Coupling
  • Brand: Dixon®
  • ARGPN: PPD200
  • MPN: PPD200
  • ARG Industrial Available for delivery: loading
  • ARG Industrial Available for pickup at Anchorage, AK Branch: loading
  • Available for Dixon Valve & Coupling factory-direct delivery: loading
  • loading
  • Add to cart
Add To Favorites
  1. pin-int

Dixon® Cam and Groove Coupler, Coupling Fitting, 2 in Connection Size 1, Connection Type 1: Type D, 2 in Connection Size 2, Connection Type 2: FNPT, Type D|FNPT Connection, Polypropylene, Material Construction: Polypropylene, 3-1/8 in L x 7-3/4 in W, 100 psi Maximum Operating Pressure, 70 deg F Operating Temperature

Connection Size 1      :      2 in
Connection Size 2      :      2 in
Connection Type      :      Type D|FNPT
Connection Type 1      :      Type D
Connection Type 2      :      FNPT
Dimensions      :      3-1/8 in L x 7-3/4 in W
Fitting Type      :      Coupling
Material      :      Polypropylene
Material Construction      :      Polypropylene
Maximum Operating Pressure      :      100 psi
Operating Temperature      :      70 deg F
Manufactured from glass-filled polypropylene|EPDM gasket|304 stainless steel handles and pins
  • pdfSpecification Sheet https://www.alaskarubbergroup.com//ASSETS/DOCUMENTS/ITEMS/EN/DIXON_PPC100_Specification_Sheet.pdf
  • pdfLine Drawing https://www.alaskarubbergroup.com//ASSETS/DOCUMENTS/ITEMS/EN/DIXON_PPD100_Line_Drawing.pdf
