Dixon® SCVH16

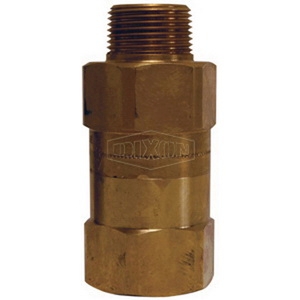

Dixon® SCVH16 Brass Safety Check Valve, 2 in NPT x Hose, 350 psi, 1100 - 1200 scfm
- Manufacturer: Dixon Valve & Coupling
- Brand: Dixon®
- ARGPN: SCVH16
- MPN: SCVH16
-
Available for delivery:
-
Available for pickup at
Anchorage, AK Branch:
-
Available for Dixon Valve & Coupling factory-direct delivery:
-
Dixon® Safety Check Valve, Series: SCV, Nominal Size: 2 in, Connection Type: NPT x Hose, Flow Rate: 1100 - 1200 scfm, Material Construction: Brass, 6-1/4 in Width, 250 deg F, 350 psi
California residents see Prop 65 WARNINGS
| Connection Type | : | NPT x Hose |
| Flow Rate | : | 1100 - 1200 scfm |
| Material | : | Brass |
| Material Construction | : | Brass |
| Nominal Size | : | 2 in |
| Pressure Rating | : | 350 psi |
| Product Type | : | Check Valve |
| Series | : | SCV |
| Temperature Rating | : | 250 deg F |
| Width | : | 6-1/4 in |
- High-flow valve to provide optimum performance
- Controls excess air flow (SCFM) in only one direction
- Automatically senses change in air flow and shuts off the flow in the event of a surge in excess of valve flow rating thus preventing hose whip
- Solid brass body and valve
- Stainless steel spring and roll pin
- Conforms to OSHA regulation 1926.302 (b) seven requiring a safety device at the source of the air supply and at branch air lines
Applications: Used in temporary plant/factory air lines, construction sites, shipyards or utilities
Safety Notes:
- Not for use in applications where 100% of the available air is required, i.e. sand blast, pile driving rigs, expansion joint blow down pipes, etc.
- Does not prevent backflow.
