Dixon® 150DA-90SS 150DA-90SS

Dixon® 150DA-90SS

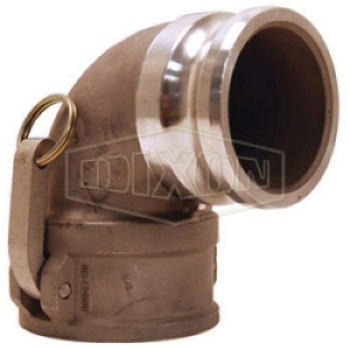

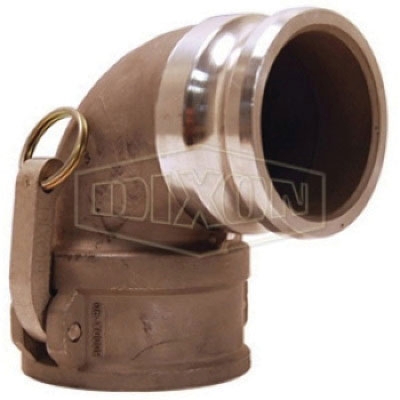

Dixon® 150DA-90SS 316 Stainless Steel Cam and Groove 90 deg Elbow, 1-1/2 in Male Type D x 1-1/2 in Female Type A

  • Manufacturer: Dixon Valve & Coupling
  • Brand: Dixon®
  • ARGPN: 150DA-90SS
  • MPN: 150DA-90SS
  • ARG Industrial Available for delivery: loading
  • ARG Industrial Available for pickup at Anchorage, AK Branch: loading
  • Available for Dixon Valve & Coupling factory-direct delivery: loading
  • loading
  • Add to cart
Add To Favorites
  1. pin-int

Dixon® Cam and Groove 90 deg Elbow, Connection Type 1: Type D, Gender 1: Male, Connection Size 1: 1-1/2 in, Connection Type 2: Type A, Gender 2: Female, Connection Size 2: 1-1/2 in, 250 psi, Material Construction: 316 Stainless Steel

California residents see Prop 65 WARNINGS

Connection Size 1      :      1-1/2 in
Connection Size 2      :      1-1/2 in
Connection Type 1      :      Type D
Connection Type 2      :      Type A
Gender 1      :      Male
Gender 2      :      Female
Material      :      Stainless Steel
Material Construction      :      316 Stainless Steel
Pressure Rating      :      250 psi
Shape      :      90 deg Elbow
  • Produced as a welded fabrication
  • Buna-N seal material
  • Produced to interchange with all product produced to commercial item description A-A-59326D

Safety Notes: Under no circumstances should cam and groove couplings be used for compressed air or steam service!

  • Pressure rating recommendations are based on the use of mating Dixon® fittings at ambient temperature 70 deg F with a standard seal installed.
  • For use at elevated temperature or other unusual operating conditions, consult Dixon®.

    Applications: For use with liquids

    • pdfCatalog https://www.alaskarubbergroup.com//ASSETS/DOCUMENTS/ITEMS/EN/Dixon_100APM_CAT.pdf
    • pdfCut Sheet https://www.alaskarubbergroup.com//ASSETS/DOCUMENTS/ITEMS/EN/Dixon_150DA90AL_SS.pdf
    • pdfTechnical Drawing/Parts Diagram https://www.alaskarubbergroup.com//ASSETS/DOCUMENTS/ITEMS/EN/Dixon_150DA90SS_TD.pdf
