Dixon® 2880809C JF-08-06

Dixon® 2880809C

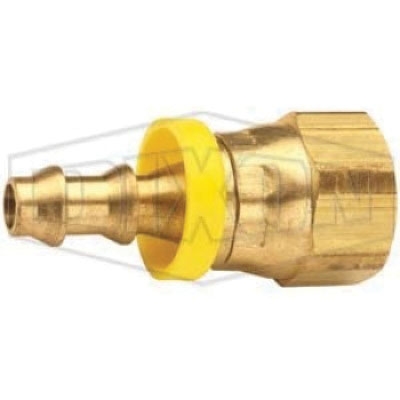

Dixon® 2880809C Brass Push-On Hose Barb with Plastic Cap, 1/2 in Hose Barb x 3/8 in Female 37 deg JIC Swivel

  • Manufacturer: Dixon Valve & Coupling
  • Brand: Dixon®
  • ARGPN: JF-08-06
  • MPN: 2880809C
  • ARG Industrial Available for delivery: loading
  • ARG Industrial Available for pickup at Anchorage, AK Branch: loading
  • Available for Dixon Valve & Coupling factory-direct delivery: loading
  • loading
  • Add to cart
Add To Favorites
  1. pin-int

Dixon® Push-On Hose Barb with Plastic Cap, Connection Type 1: Hose Barb, Connection Size 1: 1/2 in, Connection Type 2: 37 deg JIC Swivel, Gender 2: Female, Connection Size 2: 3/8 in, Thread Size 2: 9/16-18 UNF, Hex Size: 11/16 in, 350 psi, Material Construction: Brass, Dimensions: 1.85 in L, Dimension Standards: SAE J476, J512, J514, J516, -40 to 150 deg F

California residents see Prop 65 WARNINGS

Connection Size 1      :      1/2 in
Connection Size 2      :      3/8 in
Connection Type 1      :      Hose Barb
Connection Type 2      :      37 deg JIC Swivel
Dimension Standards      :      SAE J476, J512, J514, J516
Dimensions      :      1.85 in L
Gender 2      :      Female
Hex Size      :      11/16 in
Material      :      Brass
Material Construction      :      Brass
Pressure Rating      :      350 psi
Shape      :      Hose Barb
Temperature Rating      :      -40 to 150 deg F
Thread Size 2      :      9/16-18 UNF
  • Yellow plastic cap

Instructions: Assembly instructions: 1. Trim hose end with smooth square cut.

  • 2. Lubricate either push-on fitting, hose or both.
  • 3. Insert push-on fitting into hose until first barb is in hose.
  • 4. Place end of fitting against a flat object (bench, wall, etc.) and grip the hose 1 in from end.
  • Push with a steady force until end of hose is covered by yellow plastic cap.
  • Disassembly instructions: 1. Leaving push-on fitting in place, make a 1 in cut in the hose along the barbed end of the fitting. Note: Be careful not to nick barbs when cutting the hose.
  • 2. With firm grip on hose, give a sharp downward pull to release the fitting from the hose.

    Safety Notes: Dixon® push-on fittings are intended for use with Lok-On (push-on style) hose only.

  • Caution: Push-on fittings will properly grip push-on hose only when pushed all the way in, with the cut end of the hose completely concealed by the plastic cap.
    • pdfCatalog https://www.alaskarubbergroup.com//ASSETS/DOCUMENTS/ITEMS/EN/Dixon_14MPHRL100_CAT.pdf
    • pdfCut Sheet https://www.alaskarubbergroup.com//ASSETS/DOCUMENTS/ITEMS/EN/Dixon_2880809C_SS.pdf
    • pdfSDS https://www.alaskarubbergroup.com//ASSETS/DOCUMENTS/ITEMS/EN/Dixon_2880809C_SDS.pdf
