Dixon® 300DA-45AL 300DA-45AL

Dixon® 300DA-45AL

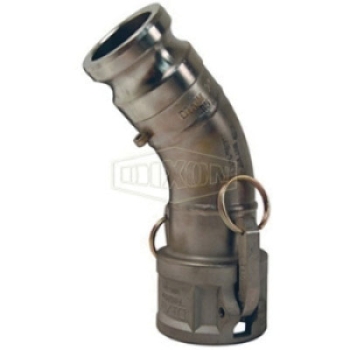

Dixon® 300DA-45AL Aluminum Cam and Groove 45 deg Elbow, 3 in Male Type D x 3 in Female Type A

  • Manufacturer: Dixon Valve & Coupling
  • Brand: Dixon®
  • ARGPN: 300DA-45AL
  • MPN: 300DA-45AL
  • ARG Industrial Available for delivery: loading
  • ARG Industrial Available for pickup at Anchorage, AK Branch: loading
  • Available for Dixon Valve & Coupling factory-direct delivery: loading
  • loading
  • Add to cart
Add To Favorites
  1. pin-int

Dixon® Cam and Groove 45 deg Elbow, Connection Type 1: Type D, Gender 1: Male, Connection Size 1: 3 in, Connection Type 2: Type A, Gender 2: Female, Connection Size 2: 3 in, 125 psi, Material Construction: Aluminum, Dimensions: 7-3/8 in L x 6-7/64 in H

California residents see Prop 65 WARNINGS

Connection Size 1      :      3 in
Connection Size 2      :      3 in
Connection Type 1      :      Type D
Connection Type 2      :      Type A
Dimensions      :      7-3/8 in L x 6-7/64 in H
Gender 1      :      Male
Gender 2      :      Female
Material      :      Aluminum
Material Construction      :      Aluminum
Pressure Rating      :      125 psi
Shape      :      45 deg Elbow
  • Buna-N seal material
  • Produced to interchange with all product produced to commercial item description A-A-59326D
  • 356T6 aluminum construction

Safety Notes: Under no circumstances should cam and groove couplings be used for compressed air or steam service!

  • Pressure rating recommendations are based on the use of mating Dixon® fittings at ambient temperature 70 deg F with a standard seal installed.
  • For use at elevated temperature or other unusual operating conditions, consult Dixon®.

    Applications: For use with liquids

    • pdfCatalog https://www.alaskarubbergroup.com//ASSETS/DOCUMENTS/ITEMS/EN/Dixon_100APM_CAT.pdf
    • pdfCut Sheet https://www.alaskarubbergroup.com//ASSETS/DOCUMENTS/ITEMS/EN/Dixon_150DA90AL_SS.pdf
    • pdfTechnical Drawing/Parts Diagram https://www.alaskarubbergroup.com//ASSETS/DOCUMENTS/ITEMS/EN/Dixon_300DA45AL_TD.pdf
