Dixon® 5204NG 5204NG

Dixon® 5204NG

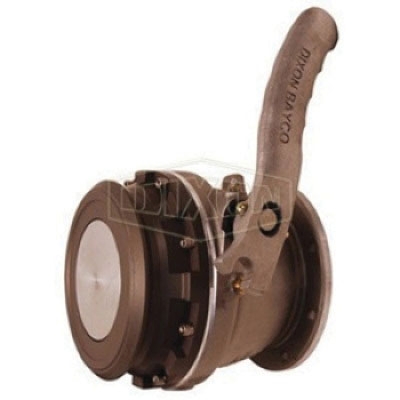

Dixon® 5204NG Aluminum Fixed Handle API Load/Unload Valve, 4 in TTMA Flange, For Gasoline and Diesel, Up to E100 and B100 Biofuels

  • Manufacturer: Dixon Valve & Coupling
  • Brand: Dixon®
  • ARGPN: 5204NG
  • MPN: 5204NG
  • ARG Industrial Available for delivery: loading
  • ARG Industrial Available for pickup at Anchorage, AK Branch: loading
  • loading
  • Add to cart
Add To Favorites
  1. pin-int

Dixon® Fixed Handle API Load/Unload Valve, Connection Type 1: TTMA Flange, Connection Size 1: 4 in, Material Construction: Aluminum, Dimensions: 7 in L, For Use With: Gasoline and Diesel, Up to E100 and B100 Biofuels

California residents see Prop 65 WARNINGS

Connection Size 1      :      4 in
Connection Type 1      :      TTMA Flange
Dimensions      :      7 in L
For Use With      :      Gasoline and Diesel, Up to E100 and B100 Biofuels
Material      :      Aluminum
Material Construction      :      Aluminum
Shape      :      Load/Unload Valve
  • Ergonomically curved handle operates on a short 62 deg stroke
  • Any required maintenance is simplified, Dixon Bayco API valves can be completely rebuilt without the need to remove the valve from the tanker
  • Nose ring is anodized hard coat aluminum, which in most applications will provide years of trouble-free service, nose ring can be rotated to provide a fresh connection service
  • Aluminum body with anodized hard coat aluminum nose ring and stainless steel hardware
  • Fixed aluminum handle
  • Baylast™ seal
  • Manufactured to American Petroleum Institute standard API RP-1004, which allows for positive connection to drop adapters and rack couplers such as the Dixon Bayco 5300/5400 Series rack coupler

Applications: Used for bottom loading and unloading of petroleum tankers, load/unload valve permits both terminal loading and fuel unloading through the valve

  • pdfCatalog https://www.alaskarubbergroup.com//ASSETS/DOCUMENTS/ITEMS/EN/Dixon_60NAB3_CAT.pdf
  • pdfCut Sheet https://www.alaskarubbergroup.com//ASSETS/DOCUMENTS/ITEMS/EN/Dixon_5204NG_SS.pdf
