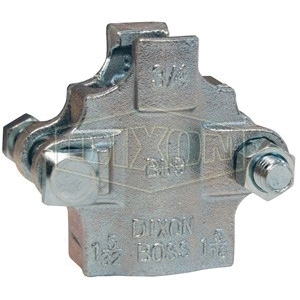

Dixon® Boss™ BD Cast Carbon Steel 2-Bolt Clamp, 1/4 in, 1-15/32 in W, 1-3/16 in Thick

  • Manufacturer: Dixon Valve & Coupling
  • Brand: Dixon®
  • ARGPN: BD
  • MPN: BD
  • ARG Industrial Available for delivery: loading
  • ARG Industrial Available for pickup at Anchorage, AK Branch: loading
  • Sold As: 100/PK
  • loading
  • Add to cart
Add To Favorites
  1. pin-int

Dixon® Boss™ 2-Bolt Clamp, Nominal Size: 1/4 in, 36/64 in Maximum Clamp Diameter, 36/64 in Minimum Clamp Diameter, Locking Style: Bolt, Torque Rating: 6 ft-lb, Material Construction: Cast Carbon Steel, 1-25/32 in Length, 1-15/32 in Width, 1-3/16 in Thickness, 450 deg F Steam Service

California residents see Prop 65 WARNINGS

Length      :      1-25/32 in
Locking Style      :      Bolt
Material      :      Steel
Material Construction      :      Cast Carbon Steel
Maximum Clamp Diameter      :      36/64 in
Minimum Clamp Diameter      :      36/64 in
Nominal Size      :      1/4 in
Product Type      :      Bolt Clamp
Sub Brand      :      Boss™
Temperature Rating      :      450 deg F Steam Service
Thickness      :      1-3/16 in
Torque Rating      :      6 ft-lb
Width      :      1-15/32 in
  • Two-bolt type clamp with two gripping fingers and two clamp sections
  • The correct size Boss clamp must be used
  • Bolts in boss clamps are designed to bend as they are tightened, this allows the clamp to conform to the hose outside diameter
  • Always tighten bolts to their specified torque value
  • Periodic re-tightening of bolts is required due to "cold flow" phenomenon present in all rubber hoses
  • Recommended for steam service up to 450 deg F

Instructions: 2-Bolt Dixon® Boss™ clamp bolt tightening sequence, using a torque wrench, begin tightening the bolts as follows: A) First bolt (nut facing assembler) one full turn.

  • B) Second bolt (opposite first bolt) one full turn.
  • C) Repeat procedure "a" and "b" until both bolts have reached the recommended torque.
  • D) Remove assembly from vise.

    Safety Notes: The bolts used in the Boss™ interlocking clamps are not standard bolts.

  • They vary from standard bolts in their length, diameter, overall thread length and material hardness.
  • These bolts can be retorqued, but it is not recommended that the bolts or clamps be reused, as they are designed for a single bend only.
  • Dixon® recommends using only factory supplied replacement bolts.
  • Replacement nuts and bolts are available, contact Dixon® for more information.
  • Torque values for clamps are based on dry bolts.
  • The use of lubricant on bolts will adversely effect clamp performance.
  • Do not lubricate nuts and bolts.
  • Recommended torque rating in ft-lb.
  • Worn-out hose couplings can be dangerous.
  • They should be checked regularly and replace when necessary.
  • Each coupling user should review applications and add safety devices where indicated.
  • Note: Pressurized steam is an extremely dangerous commodity.
  • Only hose, fittings, clamps and accessory items that have been approved for steam service should ever be used!
  • Never use an unapproved item for steam service.
  • Always follow the manufacturer's product recommendations for pressurized steam handling.
