Dixon® HTE4F4 HTE4F4

Dixon® HTE4F4

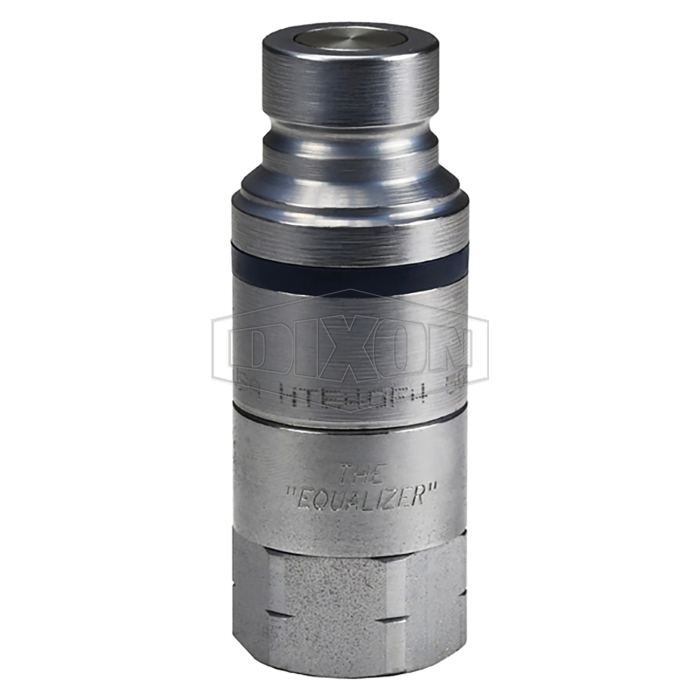

Dixon® Correct Connect™ HTE Zinc/Nickel-Plated Steel Connect Under Pressure Flushface Plug, 1/2 in Quick Disconnect x 1/2 in FNPTF

  • Manufacturer: Dixon Valve & Coupling
  • Brand: Dixon®
  • ARGPN: HTE4F4
  • MPN: HTE4F4
  • ARG Industrial Available for delivery: loading
  • ARG Industrial Available for pickup at Anchorage, AK Branch: loading
  • Available for Dixon Valve & Coupling factory-direct delivery: loading
  • loading
  • Add to cart
Add To Favorites
  1. pin-int

Dixon® Correct Connect™ Connect Under Pressure Flushface Plug, Series: HTE, Connection Type 1: Quick Disconnect, Connection Size 1: 1/2 in, Connection Type 2: NPTF, Gender 2: Female, Connection Size 2: 1/2 in, Thread Size 2: 1/2-14, Hex Size: 1-1/8 in, 5000 psi, Material Construction: Steel, Finish: Zinc/Nickel-Plated, Dimensions: 1.30 in OD x 3.4 in L, Dimension Standards: ISO 16028, -65 to 212 deg F, For Use With: HTZ and HT Series Couplers

California residents see Prop 65 WARNINGS

Connection Size 1      :      1/2 in
Connection Size 2      :      1/2 in
Connection Type 1      :      Quick Disconnect
Connection Type 2      :      NPTF
Dimension Standards      :      ISO 16028
Dimensions      :      1.30 in OD x 3.4 in L
Finish      :      Zinc/Nickel-Plated
For Use With      :      HTZ and HT Series Couplers
Gender 2      :      Female
Hex Size      :      1-1/8 in
Material      :      Steel
Material Construction      :      Steel
Pressure Rating      :      5000 psi
Series      :      HTE
Shape      :      Plug
Sub Brand      :      Correct Connect™
Temperature Rating      :      -65 to 212 deg F
Thread Size 2      :      1/2-14
  • Non-linear connection force at all pressures
  • No maximum connection pressure restrictions, up to 5000 psi
  • Head pressure or valve bleed-by has minimal effect on connection force
  • Less susceptible to system contamination
  • Design is scalable performing similarly in all sizes
  • Smooth connection action
  • Connectable with trapped pressure on HTE half only
  • Machined components are manufactured using solid steel bar stock
  • Steel componentry is plated using RoHS compliant zinc nickel for superior corrosion resistance
  • Stainless steel retaining rings and springs maximize corrosion resistance and extend service life
  • Nipples are hardened to provide resistance to brinneling during impulse service
  • Molded polyurethane valve seals, with a temperature range of -65 to 212 deg F
  • Ancillary nipple seals are nitrile (Buna-N), with a temperature range of -40 to 250 deg F
  • Parker FEC Series, Stucchi APM Series, Faster 3FFH Series
  • Conforms to ISO 16028 interchange standard interchangeable with Parker FEC, Faster 3FFH, Stucchi APM
  • pdfCatalog https://www.alaskarubbergroup.com//ASSETS/DOCUMENTS/ITEMS/EN/Dixon_HTE3F4_CAT.pdf
