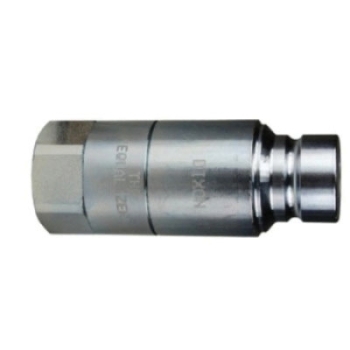

Dixon® HTE6F8

Dixon® Correct Connect™ Connect Under Pressure Flushface Plug, Series: HTE, Connection Type 1: Quick Disconnect, Connection Size 1: 3/4 in, Connection Type 2: NPTF, Gender 2: Female, Connection Size 2: 1 in, Thread Size 2: 1-11-1/2, 5000 psi, Material Construction: Steel, Finish: Zinc/Nickel-Plated, Dimension Standards: ISO 16028, -65 to 212 deg F, For Use With: HTZ and HT Series Couplers

California residents see Prop 65 WARNINGS

• Non-linear connection force at all pressures
• No maximum connection pressure restrictions, up to 5000 psi
• Head pressure or valve bleed-by has minimal effect on connection force
• Less susceptible to system contamination
• Design is scalable performing similarly in all sizes
• Smooth connection action
• Connectable with trapped pressure on HTE half only
• Machined components are manufactured using solid steel bar stock
• Steel componentry is plated using RoHS compliant zinc nickel for superior corrosion resistance
• Stainless steel retaining rings and springs maximize corrosion resistance and extend service life
• Nipples are hardened to provide resistance to brinneling during impulse service
• Molded polyurethane valve seals, with a temperature range of -65 to 212 deg F
• Ancillary nipple seals are nitrile (Buna-N), with a temperature range of -40 to 250 deg F
• Parker FEC Series, Stucchi APM Series, Faster 3FFH Series
• Conforms to ISO 16028 interchange standard interchangeable with Parker FEC, Faster 3FFH, Stucchi APM
