Dixon® DDA400SS DDA400SS

Dixon® DDA400SS

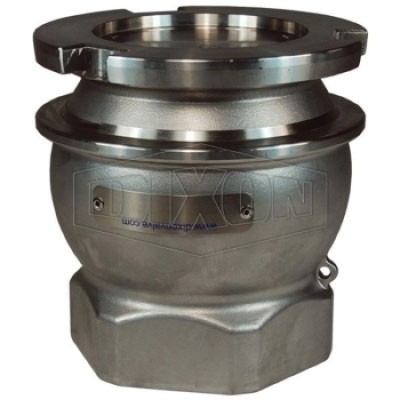

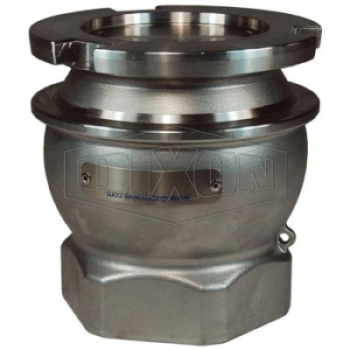

Dixon® DDA400SS 316 Stainless Steel Mann Tek Dry Disconnect Tank Unit Adapter, 164 mm Male Adapter x 4 in FNPT

  • Manufacturer: Dixon Valve & Coupling
  • Brand: Dixon®
  • ARGPN: DDA400SS
  • MPN: DDA400SS
  • ARG Industrial Available for delivery: loading
  • ARG Industrial Available for pickup at Anchorage, AK Branch: loading
  • loading
  • Add to cart
Add To Favorites
  1. pin-int

Dixon® Mann Tek Dry Disconnect Tank Unit Adapter, Connection Type 1: Adapter, Gender 1: Male, Connection Size 1: 164 mm, Connection Type 2: NPT, Gender 2: Female, Connection Size 2: 4 in, Hex Size: 4 in, 360 psi, Material Construction: 316 Stainless Steel, Dimensions: 165 mm L, For Use With: Composite (Polyeten PE-HD 300) Cap

California residents see Prop 65 WARNINGS

Connection Size 1      :      164 mm
Connection Size 2      :      4 in
Connection Type 1      :      Adapter
Connection Type 2      :      NPT
Dimensions      :      165 mm L
For Use With      :      Composite (Polyeten PE-HD 300) Cap
Gender 1      :      Male
Gender 2      :      Female
Hex Size      :      4 in
Material      :      Stainless Steel
Material Construction      :      316 Stainless Steel
Pressure Rating      :      360 psi
Shape      :      Adapter
  • Conical valve seat reduces the risk for piston blow-out
  • PTFE bearings between the piston shaft and the piston guide eliminate the risk of seizure
  • Easy to handle-push and turn-free flow, turn and pull-closed
  • Time saving - no need to drain hoses or pipe systems
  • Economical, no loss or spillage of liquids at connection or disconnection
  • Safety - the valve cannot be opened until the unit is coupled
  • Environmental friendly, accidental spillage eliminated when properly used
  • Safe and reliable, due to rugged construction
  • Stainless steel poppet
  • Stainless steel internals
  • FKM (FPM) seal
  • Produced according to NATO standard STANAG 3756 and ATOFINA SGM 2049.TUY.C
  • Compatible with Mann-Tek, Avery Hardoll and Todo-matic® and any other product produced according to NATO standard STANAG 3756

Instructions: Adapter is usually installed on the tank or manifold.

Safety Notes: Working pressure is based on psi at ambient temperature 70 deg F, for pressure ratings at other temperatures contact Dixon®.

Applications: Dry disconnect couplings are designed for the quick and spill-free connection and disconnection of hoses and pipelines. They are used by producers of ink, adhesives, fatty acids, pharmaceuticals, liquid soaps, petroleum, chemicals, agricultural and a wide variety of common caustic and specialty acids

  • pdfCatalog https://www.alaskarubbergroup.com//ASSETS/DOCUMENTS/ITEMS/EN/Dixon_DDA400SS_CAT.pdf
  • pdfCut Sheet https://www.alaskarubbergroup.com//ASSETS/DOCUMENTS/ITEMS/EN/Dixon_DDA400SS_SS.pdf
  • pdfTechnical Drawing/Parts Diagram https://www.alaskarubbergroup.com//ASSETS/DOCUMENTS/ITEMS/EN/Dixon_DDA400SS_TD.pdf
