Dixon® D4S4-B D4S4-B

Dixon® D4S4-B

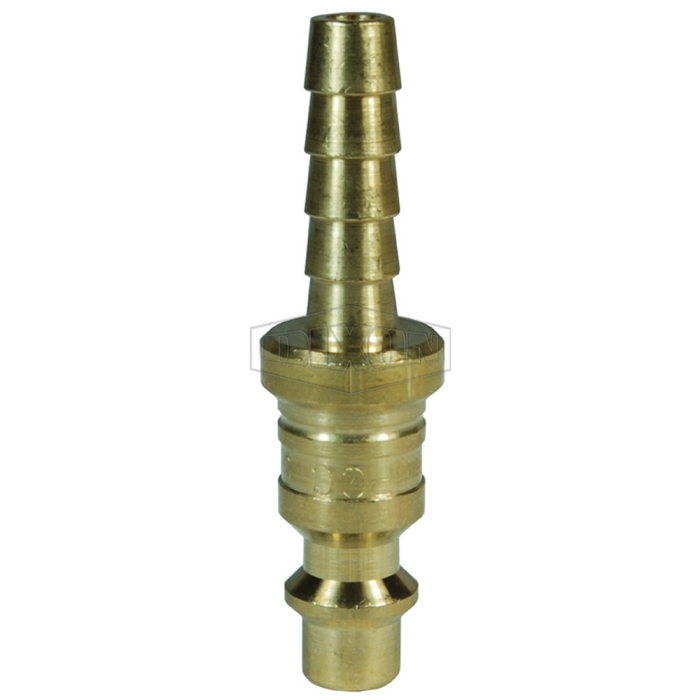

Dixon® DF Series Brass Pneumatic Industrial Interchange Plug, 1/2 in Quick Disconnect x 1/2 in Hose Barb

  • Manufacturer: Dixon Valve & Coupling
  • Brand: Dixon®
  • ARGPN: D4S4-B
  • MPN: D4S4-B
  • ARG Industrial Available for delivery: loading
  • ARG Industrial Available for pickup at Anchorage, AK Branch: loading
  • Available for Dixon Valve & Coupling factory-direct delivery: loading
  • loading
  • Add to cart
Add To Favorites
  1. pin-int

Dixon® Pneumatic Industrial Interchange Plug, Series: DF, Connection Type 1: Quick Disconnect, Connection Size 1: 1/2 in, Connection Type 2: Hose Barb, Connection Size 2: 1/2 in, 500 psi, Material Construction: Brass, Dimensions: 0.75 in Dia x 2.53 in L, -40 to 250 deg F

California residents see Prop 65 WARNINGS

Connection Size 1      :      1/2 in
Connection Size 2      :      1/2 in
Connection Type 1      :      Quick Disconnect
Connection Type 2      :      Hose Barb
Dimensions      :      0.75 in Dia x 2.53 in L
Material      :      Brass
Material Construction      :      Brass
Pressure Rating      :      500 psi
Series      :      DF
Shape      :      Plug
Temperature Rating      :      -40 to 250 deg F
  • Machined components are manufactured using solid bar stock
  • Foster 3, 4, 5 and 6 Series
  • Parker 30 Series automatic interchange and Parker 20 Series manual interchange
  • Hansen 3000, 4000, 5000 and 6000 and Hansen 1000, 400 and 500

Safety Notes: It is important to be safe when installing quick disconnect couplings into a pneumatic circuit.

  • Never install a pneumatic coupling directly into an air tool, use a piece of hose that is at least 18 in long, between the tool and the coupling, to prevent damage to the coupling.
  • To protect the operator, safety devices, such as a safety check valve and safety cable should be installed in case there is a hose or coupling failure.
  • Operating pressure for couplings utilizing hose barb connections may be dramatically reduced to that of the hose rating and hose end connection combination.
  • Consult hose manufacturer's catalog for hose end connection ratings.
  • If in doubt, test under controlled conditions for suitability to application.
  • Dixon® cannot assume liability for misapplication of production resulting in equipment down-time, lost production, and personal injury including death.
    • pdfCatalog https://www.alaskarubbergroup.com//ASSETS/DOCUMENTS/ITEMS/EN/Dixon_6DM8-B_CAT.pdf
