Dixon® D2M1 D2M1

Dixon® D2M1

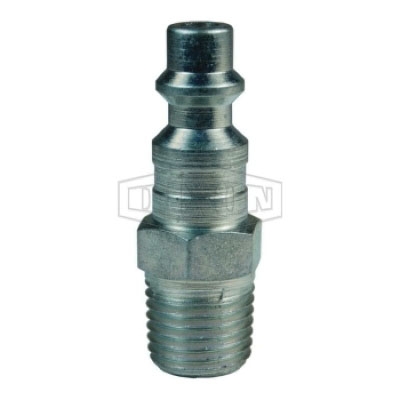

Dixon® DF Series Trivalent Chrome-Plated Steel Pneumatic Industrial Interchange Plug, 1/4 in Quick Disconnect x 1/8 in MNPTF

  • Manufacturer: Dixon Valve & Coupling
  • Brand: Dixon®
  • ARGPN: D2M1
  • MPN: D2M1
  • ARG Industrial Available for delivery: loading
  • ARG Industrial Available for pickup at Anchorage, AK Branch: loading
  • Available for Dixon Valve & Coupling factory-direct delivery: loading
  • loading
  • Add to cart
Add To Favorites
  1. pin-int

Dixon® Pneumatic Industrial Interchange Plug, Series: DF, Connection Type 1: Quick Disconnect, Connection Size 1: 1/4 in, Connection Type 2: NPTF, Gender 2: Male, Connection Size 2: 1/8 in, Thread Size 2: 1/8-27, Hex Size: 1/2 in, Material Construction: Steel, Finish: Trivalent Chrome-Plated, Dimensions: 0.58 in OD x 1.57 in L, -40 to 250 deg F

California residents see Prop 65 WARNINGS

Connection Size 1      :      1/4 in
Connection Size 2      :      1/8 in
Connection Type 1      :      Quick Disconnect
Connection Type 2      :      NPTF
Dimensions      :      0.58 in OD x 1.57 in L
Finish      :      Trivalent Chrome-Plated
Gender 2      :      Male
Hex Size      :      1/2 in
Material      :      Steel
Material Construction      :      Steel
Series      :      DF
Shape      :      Plug
Temperature Rating      :      -40 to 250 deg F
Thread Size 2      :      1/8-27
  • Machined components are manufactured using solid bar stock
  • Steel componentry is plated using RoHS compliant trivalent chrome
  • Foster 3, 4, 5 and 6 series
  • Parker 30 Series automatic interchange and Parker 20 Series manual interchange
  • Hansen 3000, 4000, 5000 and 6000 and Hansen 1000, 400 and 500

Safety Notes: It is important to be safe when installing quick disconnect couplings into a pneumatic circuit.

  • Never install a pneumatic coupling directly into an air tool, use a piece of hose that is at least 18 in long, between the tool and the coupling, to prevent damage to the coupling.
  • To protect the operator, safety devices, such as a safety check valve and safety cable should be installed in case there is a hose or coupling failure.
    • pdfCatalog https://www.alaskarubbergroup.com//ASSETS/DOCUMENTS/ITEMS/EN/Dixon_4FF4_CAT.pdf
    • pdfCut Sheet https://www.alaskarubbergroup.com//ASSETS/DOCUMENTS/ITEMS/EN/Dixon_D2M1_SS.pdf
