Dixon® 4NM4-B QB62

Dixon® 4NM4-B

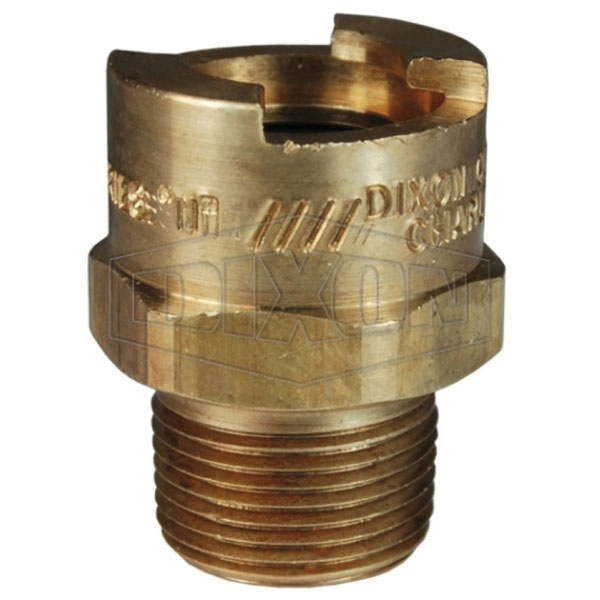

Dixon® Dix-Lock™ N Series Brass Interchange End Coupler, 1/2 in Female Quick Disconnect x 1/2 in MNPTF

  • Manufacturer: Dixon Valve & Coupling
  • Brand: Dixon®
  • ARGPN: QB62
  • MPN: 4NM4-B
  • ARG Industrial Available for delivery: loading
  • ARG Industrial Available for pickup at Anchorage, AK Branch: loading
  • Available for Dixon Valve & Coupling factory-direct delivery: loading
  • loading
  • Add to cart
Add To Favorites
  1. pin-int

Dixon® Dix-Lock™ Interchange End Coupler, Series: N, Connection Type 1: Quick Disconnect, Gender 1: Female, Connection Size 1: 1/2 in, Connection Type 2: NPTF, Gender 2: Male, Connection Size 2: 1/2 in, Hex Size: 1-3/8 in, Material Construction: Brass, Dimensions: 1.5 in OD x 1.85 in L, -40 to 250 deg F

California residents see Prop 65 WARNINGS

Connection Size 1      :      1/2 in
Connection Size 2      :      1/2 in
Connection Type 1      :      Quick Disconnect
Connection Type 2      :      NPTF
Dimensions      :      1.5 in OD x 1.85 in L
Gender 1      :      Female
Gender 2      :      Male
Hex Size      :      1-3/8 in
Material      :      Brass
Material Construction      :      Brass
Series      :      N
Shape      :      Coupler
Sub Brand      :      Dix-Lock™
Temperature Rating      :      -40 to 250 deg F
  • Bowes interchange bayonet style
  • Interchangeable with Bowes 51000 Series, National Series 'B', MacDonald Quick-Action, Campbell Single-Lock

Safety Notes: It is important to be safe when installing quick disconnect couplings into a pneumatic circuit.

  • Never install a pneumatic coupling directly into an air tool, use a piece of hose that is at least 18 in long, between the tool and the coupling, to prevent damage to the coupling.
  • To protect the operator, safety devices, such as a safety check valve and safety cable should be installed in case there is a hose or coupling failure.
    • pdfCatalog https://www.alaskarubbergroup.com//ASSETS/DOCUMENTS/ITEMS/EN/Dixon_10WSDPA_CAT.pdf
    • pdfCut Sheet https://www.alaskarubbergroup.com//ASSETS/DOCUMENTS/ITEMS/EN/Dixon_4NS3B_SS.pdf
