Dixon® 4N4N

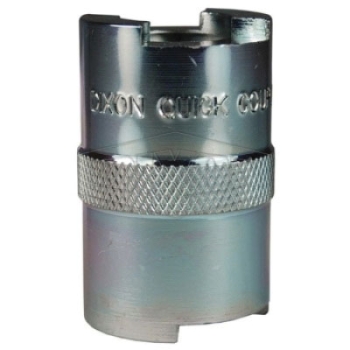

Dixon® Dix-Lock™ N Series Steel Interchange Gender Change Union, 1/2 in Female Quick Disconnect

Manufacturer: Dixon Valve & Coupling
Brand: Dixon®
ARGPN: 4N4N

MPN: 4N4N

Available for delivery:
Available for pickup at Anchorage, AK Branch:
Available for Dixon Valve & Coupling factory-direct delivery:
Add to cart

Description
Specs
Features
Documents
Videos

Dixon® Dix-Lock™ Interchange Gender Change Union, Series: N, Connection Type 1: Quick Disconnect, Gender 1: Female, Connection Size 1: 1/2 in, Connection Type 2: Quick Disconnect, Gender 2: Female, Connection Size 2: 1/2 in, Material Construction: Steel, Dimensions: 1.33 in OD x 3.26 in L, -40 to 250 deg F

California residents see Prop 65 WARNINGS

Connection Size 1	:	1/2 in
Connection Size 2	:	1/2 in
Connection Type 1	:	Quick Disconnect
Connection Type 2	:	Quick Disconnect
Dimensions	:	1.33 in OD x 3.26 in L
Gender 1	:	Female
Gender 2	:	Female
Material	:	Steel
Material Construction	:	Steel
Series	:	N
Shape	:	Union
Sub Brand	:	Dix-Lock™
Temperature Rating	:	-40 to 250 deg F

Machined components are manufactured using solid bar stock
Bowes interchange Bayonet style, interchangeable with Bowes 51000 series, national Series 'B', MacDonald quick-action, Campbell single-lock
Conforms to MIL-C-3486 and A-A-50431A standards

Safety Notes: It is important to be safe when installing quick disconnect couplings into a pneumatic circuit.

Never install a pneumatic coupling directly into an air tool, use a piece of hose that is at least 18 in long, between the tool and the coupling, to prevent damage to the coupling.

To protect the operator, safety devices, such as a safety check valve and safety cable should be installed in case there is a hose or coupling failure.
