Dixon® N4M6-ZLS N4M6-ZLS

Dixon® N4M6-ZLS

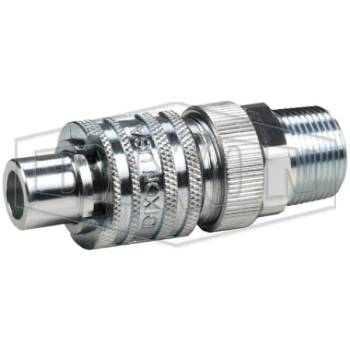

Dixon® Dix-Lock™ N Series Steel Interchange Safety-Lock End Plug, 1/2 in Male Quick Disconnect x 3/4 in MNPTF

  • Manufacturer: Dixon Valve & Coupling
  • Brand: Dixon®
  • ARGPN: N4M6-ZLS
  • MPN: N4M6-ZLS
  • ARG Industrial Available for delivery: loading
  • ARG Industrial Available for pickup at Anchorage, AK Branch: loading
  • Available for Dixon Valve & Coupling factory-direct delivery: loading
  • loading
  • Add to cart
Add To Favorites
  1. pin-int

Dixon® Dix-Lock™ Interchange Safety-Lock End Plug, Series: N, Connection Type 1: Quick Disconnect, Gender 1: Male, Connection Size 1: 1/2 in, Connection Type 2: NPTF, Gender 2: Male, Connection Size 2: 3/4 in, Thread Size 2: 3/4-14, Hex Size: 1-3/16 in, 500 psi, Material Construction: Steel, Dimensions: 1.31 in OD x 3.65 in L, -40 to 250 deg F

California residents see Prop 65 WARNINGS

Connection Size 1      :      1/2 in
Connection Size 2      :      3/4 in
Connection Type 1      :      Quick Disconnect
Connection Type 2      :      NPTF
Dimensions      :      1.31 in OD x 3.65 in L
Gender 1      :      Male
Gender 2      :      Male
Hex Size      :      1-3/16 in
Material      :      Steel
Material Construction      :      Steel
Pressure Rating      :      500 psi
Series      :      N
Shape      :      End Plug
Sub Brand      :      Dix-Lock™
Temperature Rating      :      -40 to 250 deg F
Thread Size 2      :      3/4-14
  • Machined components are manufactured using solid bar stock
  • Stainless steel retaining ring and spring maximize corrosion resistance and extend service life
  • Steel componentry is plated using RoHS compliant trivalent chrome
  • Coupling sleeve constructed of cast zinc steel
  • Steel lock ring
  • Bowes interchange bayonet style
  • Interchangeable with Bowes 51000 Series, National Series 'B', MacDonald Quick-Action, Campbell Single-Lock
  • pdfCatalog https://www.alaskarubbergroup.com//ASSETS/DOCUMENTS/ITEMS/EN/Dixon_10WSDPA_CAT.pdf
  • pdfCut Sheet https://www.alaskarubbergroup.com//ASSETS/DOCUMENTS/ITEMS/EN/Dixon_4NS3B_SS.pdf
