Dixon® 4NM8

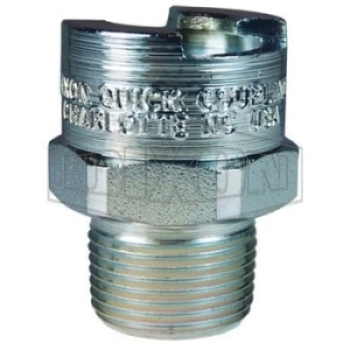

Dixon® Dix-Lock™ N Series Trivalent Chrome-Plated Steel Interchange Coupler, 1/2 in Female Quick Disconnect x 1 in MNPTF

Manufacturer: Dixon Valve & Coupling
Brand: Dixon®
ARGPN: 4NM8

MPN: 4NM8

Available for delivery:
Available for pickup at Anchorage, AK Branch:
Available for Dixon Valve & Coupling factory-direct delivery:
Add to cart

Description
Specs
Features
Documents
Videos

Dixon® Dix-Lock™ Interchange Coupler, Series: N, Connection Type 1: Quick Disconnect, Gender 1: Female, Connection Size 1: 1/2 in, Connection Type 2: NPTF, Gender 2: Male, Connection Size 2: 1 in, Hex Size: 1-1/2 in, 500 psi, Material Construction: Steel, Finish: Trivalent Chrome-Plated, Dimensions: 1.5 in OD x 1.85 in L, -40 to 250 deg F

California residents see Prop 65 WARNINGS

Connection Size 1	:	1/2 in
Connection Size 2	:	1 in
Connection Type 1	:	Quick Disconnect
Connection Type 2	:	NPTF
Dimensions	:	1.5 in OD x 1.85 in L
Finish	:	Trivalent Chrome-Plated
Gender 1	:	Female
Gender 2	:	Male
Hex Size	:	1-1/2 in
Material	:	Steel
Material Construction	:	Steel
Pressure Rating	:	500 psi
Series	:	N
Shape	:	Coupler
Sub Brand	:	Dix-Lock™
Temperature Rating	:	-40 to 250 deg F

Machined components are manufactured using solid bar stock
Nitrile (Buna-N) seals are standard
Steel componentry is plated using RoHS compliant trivalent chrome
Conforms to MIL-C-3486 and A-A-50431A standards
Bowes interchange bayonet style
Interchangeable with Bowes 51000 Series, National Series 'B', MacDonald quick action, Campbell single-lock

Safety Notes: It is important to be safe when installing quick disconnect couplings into a pneumatic circuit.

Never install a pneumatic coupling directly into an air tool, use a piece of hose that is at least 18 in long, between the tool and the coupling, to prevent damage to the coupling.

To protect the operator, safety devices, such as a safety check valve and safety cable should be installed in case there is a hose or coupling failure.
