Dixon® 3NCS4

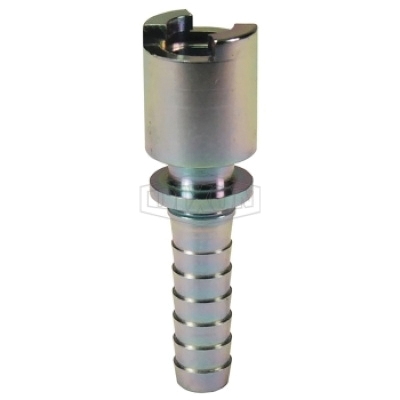

Dixon® Dix-Lock™ N Series Trivalent Chrome-Plated Steel Pneumatic Interchange Coupler, 3/8 in Female Quick Disconnect x 1/2 in Hose Barb

Manufacturer: Dixon Valve & Coupling
Brand: Dixon®
ARGPN: 3NCS4

MPN: 3NCS4

Available for delivery:
Available for pickup at Anchorage, AK Branch:
Available for Dixon Valve & Coupling factory-direct delivery:
Add to cart

Description
Specs
Features
Documents
Videos

Dixon® Dix-Lock™ Pneumatic Interchange Coupler, Series: N, Connection Type 1: Quick Disconnect, Gender 1: Female, Connection Size 1: 3/8 in, Connection Type 2: Hose Barb, Connection Size 2: 1/2 in, Material Construction: Steel, Finish: Trivalent Chrome-Plated, Dimensions: 1.2 in OD x 2.41 in L, -40 to 250 deg F

California residents see Prop 65 WARNINGS

Connection Size 1	:	3/8 in
Connection Size 2	:	1/2 in
Connection Type 1	:	Quick Disconnect
Connection Type 2	:	Hose Barb
Dimensions	:	1.2 in OD x 2.41 in L
Finish	:	Trivalent Chrome-Plated
Gender 1	:	Female
Material	:	Steel
Material Construction	:	Steel
Series	:	N
Shape	:	Coupler
Sub Brand	:	Dix-Lock™
Temperature Rating	:	-40 to 250 deg F

Machined components are manufactured using solid bar stock
Nitrile (Buna-N) seals are standard
Steel componentry is plated using RoHS compliant trivalent chrome
Bowes interchange bayonet style
Interchangeable with Bowes 51000 Series, National Series 'B', MacDonald Quick-Action, Campbell Single-Lock
Low profile prevents hose snags

Safety Notes: Operating pressure for couplings utilizing hose barb connections may be dramatically reduced to that of the hose rating and hose end connection combination.

Consult hose manufacturer's catalog for hose end connection ratings.

If in doubt, test under controlled conditions for suitability to application.

Dixon® cannot assume liability for misapplication of production resulting in equipment down-time, lost production, and personal injury including death.

It is important to be safe when installing quick disconnect couplings into a pneumatic circuit.

Never install a pneumatic coupling directly into an air tool, use a piece of hose that is at least 18 in long, between the tool and the coupling, to prevent damage to the coupling.

To protect the operator, safety devices, such as a safety check valve and safety cable should be installed in case there is a hose or coupling failure.
